The solid steel shaft D F has a diameter of 25 mm and is supported by smooth bearings at D and E

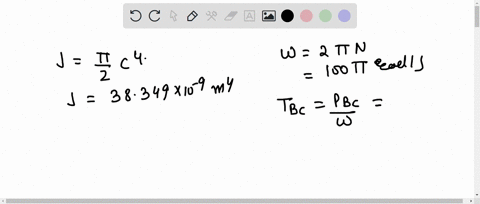

step 1 So let's solve this question. So in this question we have omega equals to 100 pi, 100 pi radian

The solid steel shaft D F has a diameter of 25 mm and is...

The solid steel shaft $D F$ has a diameter of $25 \mathrm{mm}$ and is supported by smooth bearings at $D$ and $E .$ It is coupled to a motor at $F,$ which delivers $12 \mathrm{kW}$ of power to the shaft while it is turning at 50 rev / s. If gears $A, B,$ and $C$ remove $3 \mathrm{kW}, 4 \mathrm{kW},$ and $5 \mathrm{kW}$ respectively, determine the maximum shear stress in the shaft within regions $C F$ and $B C$. The shaft is free to turn in its support bearings $D$ and $E$

Key Concepts

Torque-Power Relationship

This concept connects the power delivered to a rotating system with the generated torque and angular velocity using the formula P = T?. It is fundamental in mechanical systems to determine the amount of torque a shaft must withstand based on its power input and rotational speed.

Torsion in Circular Shafts

Torsion refers to the twisting of an object due to an applied torque. For circular shafts, torsion analysis is critical in determining how the applied torque results in shear stresses that can lead to failure if the material’s limits are exceeded.

Polar Moment of Inertia

The polar moment of inertia is a geometric property that measures a shaft’s resistance to torsion. For circular cross-sections, it plays a central role in calculating shear stress due to twisting, as it appears in the denominator of the torsion formula relating torque to shear stress.

Shear Stress from Torsion

When a shaft undergoes torsion, shear stress is produced across its cross-section. This stress can be calculated using the relationship ? = T?/J, where T is the torque, ? is the radial distance from the axis (usually the outer radius for maximum stress), and J is the polar moment of inertia. This calculation is essential to ensure that the material can withstand the operational loads.

Distribution of Torque Along a Shaft

In shafts that have power taken off at various points, the torque is not uniform along the length. Understanding how torque accumulates or decreases along the shaft length is key to determining the maximum shear stress in different sections and ensuring that each segment is designed to resist the localized stresses.
