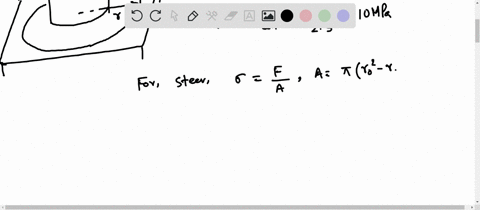

The steel pipe is supported on the circular base plate and concrete pedestal. If the thickness of the pipe is $t=5 \mathrm{mm}$ and the base plate has a radius of $150 \mathrm{mm}$ determine the factors of safety against failure of the steel and concrete. The applied force is $500 \mathrm{kN}$, and the normal failure stresses for steel and concrete are $\left(\sigma_{ \text {fail } )_{\text {st }}}=350 \mathrm{MPa}\right.$ and $\left(\sigma_{ \text {fail } )_{\text {con }}}=25$ MPa, respectively. \right.

Key Concepts

Cross-Sectional Geometry

Cross-sectional geometry plays an important role in determining the structural performance of a component by influencing its area and moment of inertia. For circular or annular sections, geometric calculations are used to compute the effective area over which forces act. This is particularly important for structures like thin-walled pipes or circular base plates, where the dimensions directly affect the stress distribution and the factor of safety.

Thin-Walled Structures

Thin-walled structures are characterized by wall thicknesses that are small relative to other dimensions, which allows for a simplified analysis of stresses. The thin-wall assumption helps in treating the wall as a shell with uniform stress distribution, thereby simplifying the calculations involved in determining how the applied loads affect the structure. This concept is essential in the design and analysis of pipes and similar elements where efficiency and weight reduction are important.

Load Distribution

Load distribution describes how an external load is spread across the elements of a structure. Proper understanding and calculation of load distribution are critical for assessing the performance and safety of composite systems, where different materials share the load. This concept is key to ensuring that each component in a multi-material structure, such as a steel pipe supported on concrete, is appropriately designed to handle its portion of the applied force.

Material Strength

Material strength refers to the ability of a material to resist loads without experiencing failure. It is typically quantified by properties such as yield strength or failure stress, which indicate the maximum stress that a material can endure. Knowledge of the material strength is essential in design to ensure that the applied loads do not exceed the structural capacity of the materials used.

Stress Analysis

Stress analysis is the process of determining the internal forces (stresses) that develop within a material or structure when external loads are applied. It involves calculating stresses by dividing the applied force by the area over which the force is distributed. In this context, stress analysis is crucial for evaluating whether the stresses in the steel and concrete remain within their allowable limits, thus preventing failure.

Factor of Safety

The factor of safety is a design criterion used to ensure that a structure or component can withstand loads beyond the expected maximum without failure. It is defined as the ratio of the material's failure stress to the applied stress, providing a margin of safety in the presence of uncertainties or unexpected load increases. This concept is universally applied in engineering to achieve reliability and safety in both structural and mechanical systems.
