The Stirling cycle, shown in Fig. 27, is useful to describe...

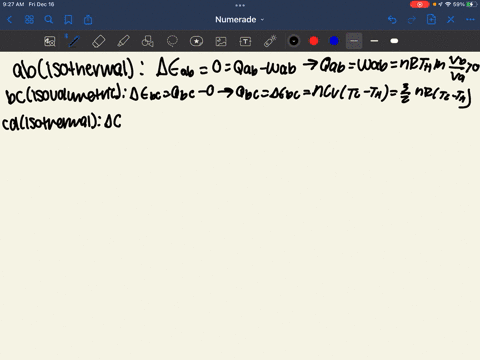

The Stirling cycle, shown in Fig. $27,$ is useful to describe external combustion engines as well as solar-power systems. Find the efficiency of the cycle in terms of the parameters shown, assuming a monatomic gas as the working substance. The processes ab and cd are isothermal whereas bc and da are at constant volume. How does it compare to the Carnot efficiency?

The Stirling cycle, shown in Fig. $27,$ is useful to describe external combustion engines as well as solar-power systems. Find the efficiency of the cycle in terms of the parameters shown, assuming a monatomic gas as the working substance. The processes ab and cd are isothermal whereas bc
and da are at constant volume. How does it compare to the Carnot efficiency?

Key Concepts

Stirling Cycle

The Stirling cycle is a closed thermodynamic cycle consisting of two isothermal processes and two isochoric (constant volume) processes. It is particularly noted for its external combustion, where heat is added and removed externally, making it ideal for applications like solar power systems and external combustion engines. Its distinct process stages offer an alternative approach to heat engine design compared to the more idealized or internally combusted cycles.

Isothermal Process

An isothermal process is a thermodynamic process during which the temperature of the system remains constant. For an ideal gas, this implies that the internal energy does not change, and any work done by the system is exactly balanced by heat transfer. In the context of the Stirling cycle, the isothermal expansions and compressions are crucial steps where significant work is done by the system.

Isochoric Process

An isochoric process is one in which the volume of the system remains constant. Since no work is performed during these processes, any change in the internal energy of the system is solely due to heat transfer. In the Stirling cycle, the constant volume (isochoric) processes serve to adjust the pressure and temperature of the gas between the isothermal steps.

Carnot Efficiency

Carnot efficiency represents the theoretical maximum efficiency that any heat engine can achieve operating between two given temperatures, solely dependent on these reservoir temperatures. It is used as a benchmark to assess the performance of real and idealized cycles. Comparing the efficiency of the Stirling cycle to Carnot efficiency provides insight into its relative performance limitations under idealized conditions.

Monatomic Gas

A monatomic gas, made up of single atoms, exhibits specific thermodynamic properties such as a fixed ratio of specific heats (? = 5/3 for a monatomic ideal gas). This simplifies the analysis of heat transfer and work during the cycle and affects efficiency calculations. Its behavior under various processes is essential in understanding and predicting the performance of cycles like the Stirling cycle.
