The switch in FIGURE EX31.33 has been in position a for a...

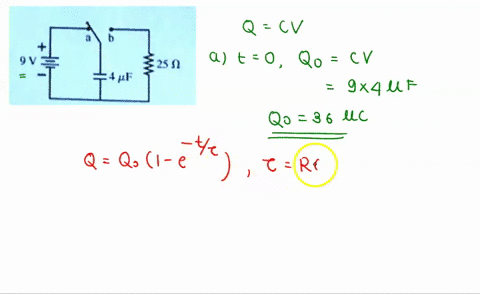

The switch in FIGURE EX31.33 has been in position a for a long time. It is changed to position b at $t=$ 0s. What are the charge $Q$ on the capacitor and the current $I$ through the resistor (a) immediately after the switch is closed? (b) at $t=$ $50 \mu s ?(c)$ at $t=200 \mu s ?$ CAN'T COPY THE FIGURE

Key Concepts

Kirchhoff's Voltage Law

Kirchhoff's Voltage Law is fundamental to analyzing circuits, ensuring that the algebraic sum of all voltages around any closed loop is zero. This principle is used to set up the equations governing the transient response of the RC circuit, linking the capacitor voltage and the resistor current immediately after the switching moment and during the subsequent evolution.

Time Constant in RC Circuits

The time constant, typically denoted by ? (tau) and calculated as the product of resistance (R) and capacitance (C), sets the timescale over which the circuit responds to changes. It indicates the time required for the system's response to reach approximately 63.2% of the transition from the initial value to its new steady-state value.

Exponential Charging/Discharging Equations

These equations describe how the voltage across the capacitor and the current in the resistor evolve over time after a switching event. They are derived from solving the differential equations that represent the circuit dynamics and typically involve exponential functions that depend on the time constant.

RC Circuit Transient Response

This concept describes how circuits with resistors and capacitors behave when a sudden change occurs, such as flipping a switch. The response is characterized by an initial state inherited from previous conditions and a gradual transition to a new steady state, following an exponential law determined by the circuit's parameters.

Capacitor Voltage Continuity

Capacitors have the property that their voltage cannot change instantaneously. At the moment a switch is flipped, the capacitor's voltage immediately after remains the same as it was just before the event, which establishes the initial condition for the transient analysis of the circuit.
