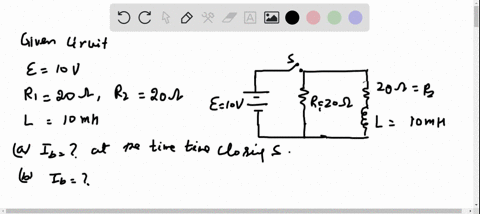

The switch in FIGURE P34.79 has been open for a long time. It is closed at $t=0$ s. What is the current through the $20 \Omega$ resistor
a. immediately after the switch is closed?
b. after the switch has been closed a long time?
c. immediately after the switch is reopened?

Key Concepts

Circuit Initial Conditions

Circuit initial conditions refer to the values of currents and voltages in the circuit immediately before a switching event occurs. These conditions are crucial because they determine the starting point for the transient response when the circuit configuration is suddenly altered. Understanding initial conditions is key to correctly predicting the circuit’s behavior right after the change.

Inductor Current Continuity

Inductor current continuity is a fundamental property stating that the current flowing through an inductor cannot change instantaneously. This is due to the energy stored in the magnetic field of the inductor, which prevents abrupt alterations in current. Recognizing this property is essential when analyzing circuit response immediately after switching events.

Switching Actions in Circuits

Switching actions in circuits involve the opening or closing of switches that suddenly change the circuit’s topology. Such actions can invoke both transient and steady-state responses, depending on the presence of reactive elements like capacitors and inductors. Analyzing switching effects is important for understanding both the immediate and long-term impact on circuit performance.

Transient Response

Transient response refers to the temporary behavior of a circuit immediately following a change, such as a switching event. It encompasses the time-dependent adjustments in voltages and currents as the circuit transitions from one equilibrium condition to another. This analysis is crucial for understanding how circuits react immediately after a sudden change before reaching a long?term steady state.

Steady-State Analysis

Steady-state analysis examines the behavior of a circuit after sufficient time has passed following a transient event. In this condition, all the transient effects have decayed, and the circuit variables (voltage, current) settle into constant values. This analysis helps predict the long-term functioning of the circuit under continuous operation.
