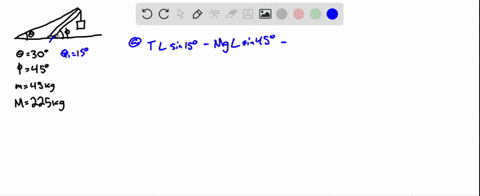

The system in Fig. 12-38 is in equilibrium. A concrete block of mass 225 kg hangs from the end o

step 1 In this problem, on the topic of equilibrium and elasticity, we are shown a concrete block of a

The system in Fig. 12-38 is in equilibrium. A concrete block...

The system in Fig. $12-38$ is in equilibrium. A concrete block of mass 225 $\mathrm{kg}$ hangs from the end of the uniform strut of mass 45.0 $\mathrm{kg} . \mathrm{A}$ cable runs from the ground, over the top of the strut, and down to the block, holding the block in place. For angles $\phi=30.0^{\circ}$ and $\theta=45.0^{\circ}$ find (a) the tension $T$ in the cable and the (b) horizontal and (c) vertical components of the force on the strut from the hinge.

The system in Fig. $12-38$ is in equilibrium. A concrete block of
mass 225 $\mathrm{kg}$ hangs from the end of
the uniform strut of mass 45.0 $\mathrm{kg} . \mathrm{A}$
cable runs from the ground, over
the top of the strut, and down to the block, holding the block in place.
For angles $\phi=30.0^{\circ}$ and $\theta=45.0^{\circ}$
find (a) the tension $T$ in the cable
and the (b) horizontal and (c) vertical components of the force on the strut from the hinge.

Key Concepts

Torque and Moment Balance

Torque, or moment, is the rotational effect produced by a force applied at a distance from a pivot point. In the context of static equilibrium, ensuring that the net moment about any point is zero is crucial for solving for unknown forces or tensions in a system.

Force Decomposition

Force decomposition involves resolving a force into its orthogonal components, typically horizontal and vertical, using trigonometric relationships. This is important in statics to apply equilibrium conditions separately in each direction.

Reaction Forces

Reaction forces, such as the forces at a hinge or support, are the forces exerted by constraints that prevent motion. These forces are typically decomposed into horizontal and vertical components, and analyzing them is key to confirming the stability and integrity of the structural system.

Static Equilibrium

Static equilibrium refers to the condition where the sum of all forces and the sum of all moments (torques) acting on a system or structure are zero, ensuring that it remains at rest. This fundamental concept is utilized to analyze and solve for unknown forces in a system, ensuring balance and stability.

Free-Body Diagram

A free-body diagram is a graphical illustration used to visualize all the external forces acting on an isolated object or structure. This tool is essential for breaking down the problem into manageable parts and setting up equilibrium equations for force and moment balances.
