The system of Prob. 5 / 84 is repeated here. If the vertical...

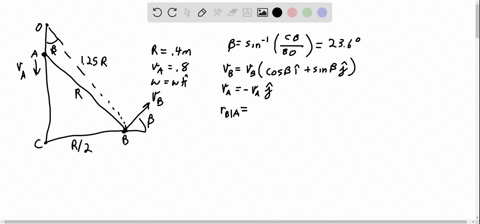

The system of Prob. $5 / 84$ is repeated here. If the vertical rod has a downward velocity $v=0.8 \mathrm{m} / \mathrm{s}$ and an upward acceleration $a=1.2 \mathrm{m} / \mathrm{s}^{2}$ when the device is in the position shown, determine the corresponding angular acceleration $\alpha$ of bar $A B$ and the magnitude of the acceleration of roller $B$. The value of $R$ is $0.4 \mathrm{m} .$

Key Concepts

Rigid Body Kinematics

This concept deals with the motion of bodies in which the distance between any two points remains constant during movement. It involves understanding how various points in a rigid system translate and rotate, and it establishes the framework for analyzing velocities and accelerations within such bodies.

Angular Acceleration

Angular acceleration is the rate of change of angular velocity over time. It is a fundamental concept in rotational dynamics and is directly related to how fast a body accelerates its rotation. In rigid body motion, the angular acceleration of the entire object is used to determine the tangential components of acceleration for points at a distance from the rotation axis.

Tangential and Normal Components of Acceleration

When an object rotates, its acceleration at a given point can be divided into tangential and normal (or centripetal) components. The tangential component, which is directly proportional to the angular acceleration and the distance from the axis, reflects changes in the speed of rotation. The normal component, related to the square of the angular velocity and the radius, represents the acceleration directed towards the center of the rotation, reflecting the change in the direction of the velocity vector.

Relative Motion Analysis in Rotating Systems

This concept involves examining the accelerations and velocities of different points on a rotating body by considering their geometric positions relative to the rotation axis. By using vector relationships, one can relate the linear acceleration of a point on the body to the angular acceleration of the rigid body and any additional translational movement, which is crucial for analyzing mechanisms such as roller and bar systems.
