The tank shown in Figure P 15.14 is filled with water to a...

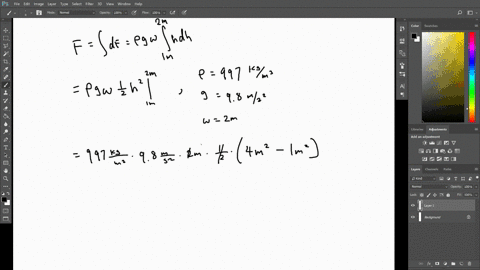

The tank shown in Figure $\mathrm{P} 15.14$ is filled with water to a depth of $2.00 \mathrm{~m}$. At the bottom of one of the side walls is a rectangular hatch $1.00 \mathrm{~m}$ high and $2.00 \mathrm{~m}$ wide. The hatch is hinged at its top. (a) Determine the force that the water exerts on the hatch. (b) Find the torque exerted about the hinges.

Key Concepts

Torque of Distributed Forces

When forces are distributed over an area, the resulting torque (or moment) about a pivot point is obtained by integrating the force contribution from each differential element, multiplied by its respective lever arm (distance from the pivot). This calculation is fundamental in determining the rotational effects of the fluid force on structures and ensuring their structural stability.

Center of Pressure

The center of pressure is the point on a submerged surface where the total hydrostatic force can be considered to act. Due to the increasing pressure with depth, the center of pressure is usually located below the geometric centroid for vertical surfaces. This concept is important for calculating moments (torques) and ensuring stable design in fluid interactions.

Force on Submerged Surfaces

The net force on a submerged surface results from integrating the varying hydrostatic pressure over the entire area of the surface. This integration accounts for the fact that pressure increases with depth, leading to a total force that is not simply the pressure at the surface’s centroid multiplied by the area. This concept is crucial in engineering applications where structures interact with fluids.

Hydrostatic Pressure

Hydrostatic pressure refers to the pressure exerted by a fluid at rest due to the force of gravity. It increases linearly with depth, typically following the relationship p = ?gh, where ? is the fluid density, g is the acceleration due to gravity, and h is the depth below the fluid's free surface. Understanding this pressure gradient is essential for analyzing forces acting on submerged surfaces.
