The three suspender bars are made of A 992 steel and have equal cross-sectional areas of 450 mm^

step 1 In this question it is told that a centrifugal rotor is accelerated from rest to 20 .5 radium pe

The three suspender bars are made of A 992 steel and have...

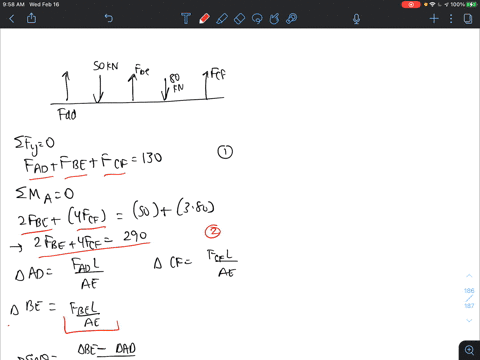

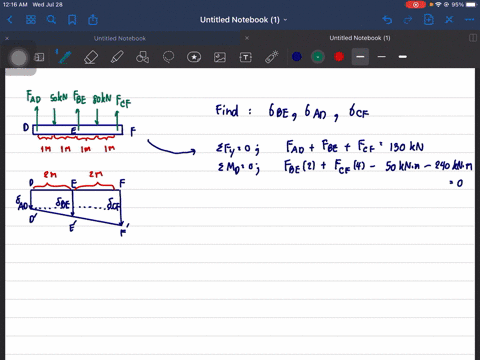

The three suspender bars are made of $\mathrm{A} 992$ steel and have equal cross-sectional areas of $450 \mathrm{mm}^{2}$. Determine the average normal stress in each bar if the rigid beam is subjected to the loading shown.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Load Distribution in Structural Members

Load distribution refers to the way an applied force or moment is shared among multiple structural elements or support components. In systems with several members bearing the load, understanding how the forces are partitioned is essential. This ensures that each component carries an appropriate portion of the load, which is a key aspect of both statically determinate and indeterminate analysis in structural engineering.

Cross-Sectional Area

The cross-sectional area of a structural member is the area of its cut face perpendicular to the axis of the load. It plays a vital role in stress calculations because the distribution of force over that area determines the level of stress within the material. A smaller area under a given load results in higher stress, making it a critical factor in structural design and analysis.

Average Normal Stress

Average normal stress is the measure of force acting perpendicular to the cross-sectional area of a material. It is calculated using the formula ? = P/A, where P is the applied load and A is the cross-sectional area. This concept is fundamental in understanding how materials behave under axial loads and in assessing whether they will exceed their elastic limits.
