The towline exerts a force of P=6 kN at the end of the 8 -m-long crane boom. If x=10 m, determin

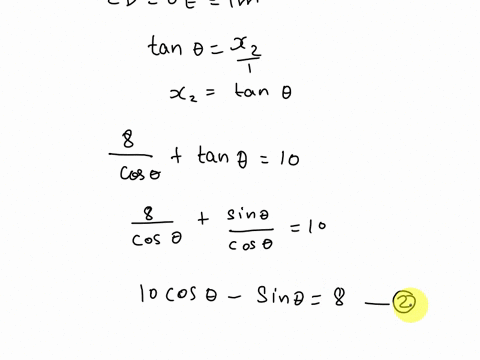

step 1 Hello everyone in this problem it is given a turbine exert of force of 6 kilo Newton at the end

The towline exerts a force of P=6 kN at the end of the 8...

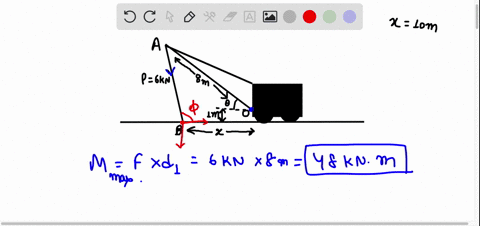

The towline exerts a force of $P=6 \mathrm{kN}$ at the end of the 8 -m-long crane boom. If $x=10 \mathrm{m}$, determine the position $\theta$ of the boom so that this force creates a maximum moment about point $O .$ What is this moment?

Key Concepts

Moment of a Force

The moment of a force (or torque) is the tendency of a force to rotate an object about a pivot or axis. It is defined as the product of the force magnitude and the perpendicular distance from the pivot point to the line of action of the force. This concept is fundamental in statics for analyzing the rotational effects of forces applied to a structure or a beam.

Lever Arm and Geometry

The lever arm is the effective perpendicular distance between the line of action of the force and the pivot point. Understanding how the geometric configuration—such as the lengths of components and the angles involved—influences this distance is crucial. In many problems, including those with cranes or beams, the moment about a point is maximized when the lever arm is maximized, which often corresponds to the force being applied perpendicular to the radius vector from the pivot.

Trigonometric Relationships in Mechanics

Trigonometry is used to resolve forces and to determine the components of the lever arm in problems involving angles. Specifically, the sine of the angle between the force vector and the arm vector determines the fraction of the force contributing to the moment. Recognizing that the maximum moment occurs when the force is perpendicular to the lever arm (i.e., when the sine component is one) is key to optimizing the configuration of the system.

Optimization in Statics

Optimization in this context involves determining the position (or angle) at which a given force produces the maximum moment about a pivot point. This usually requires setting up the moment equation as a function of the angle and identifying the condition (often via differentiation or recognizing trigonometric maximums) under which the moment is at its peak. Such analysis helps in the design and operation of mechanical systems to ensure safety and efficiency.
