The two blocks in Fig. 𝐏 4.46 are connected by a heavy uniform rope with a mass of 4.00 kg. An

step 1 Hi, in the given problem here, there are two blocks. One of the block is this, having a mass of

The two blocks in Fig. 𝐏 4.46 are connected by a heavy...

Key Concepts

Free-Body Diagram

A free-body diagram is a schematic representation used to visualize all the forces acting on a single object. It isolates the object and includes vectors for each force, such as gravity, applied forces, friction, tension, and normal forces. This tool helps in setting up the equations of motion according to Newton's laws and is fundamental when analyzing mechanical systems.

Newton's Second Law

Newton's Second Law states that the net force acting on an object equals the mass of the object multiplied by its acceleration (F_net = m * a). This principle is used to relate the forces acting on each component of a system to its acceleration, allowing the prediction and analysis of the motion of objects under various influences.

Massive Rope Dynamics

In many problems, ropes or strings are treated as massless for simplicity. However, when a rope has mass, its weight contributes to the overall force balance in the system. This means that different sections of the rope may experience different tensions due to the gravitational force acting on the mass of the rope itself, and this variation must be accounted for in the analysis.

Tension Distribution in a Massive Rope

Tension distribution refers to the variation in tension along the length of a rope that has mass. Unlike an ideal massless rope where tension is constant throughout, a massive rope exhibits a gradient in tension because each portion of the rope must support the weight of the rope below it in addition to any external loads. Analyzing this distribution is essential for establishing equilibrium and dynamics within systems involving heavy ropes.

System Acceleration Analysis

When multiple objects are connected and subjected to external forces, they move as a system. System acceleration analysis involves summing the masses of all the connected parts and applying Newton's Second Law to the system as a whole. This approach simplifies the calculation by considering the net external force acting on the entire system and dividing it by the total mass, while later individual analyses might be needed for internal forces such as variable tension in a massive rope.

Transcript

00:01 Hi, in the given problem here, there are two blocks.

00:08 One of the block is this, having a mass of 6 kilogram, then there is a thick rope joining the two blocks.

00:21 Then there is a lower block, having a mass of 5 kg.

00:28 A force f is being applied in vertically upward direction, which is having a magnitude of 200 newton.

00:40 Mass of this block is 6 .00 kilogram.

00:46 Mass of the rope is 4 .00 kilogram and mass of this lower block is 5 .00 kilograms.

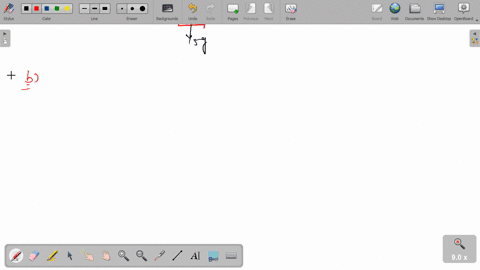

00:58 Now in the first part of the problem, we have to draw free body diagrams of both of the block.

01:05 And the row.

01:08 So first of all, for or we can write free body diagram of block of mass 6 .00 kilogram.

01:26 So to draw this, first of all, we draw the block.

01:31 Then over this block there is a force applied by us having a magnitude of 200 newton.

01:41 Then its weight means the gravitational force exerted by earth on it that is 6g and tension in the thick rope t1 which acts here vertically downward direction this tension t1 and similarly here there will be a tension t2 also acting in the same row in above direction.

02:15 So here this one is the free body diagram of block of mass 6 kg.

02:21 Now for the free body diagram of the rope fbd of the thick rope here this is the rope there are three forces acting on it.

02:43 Number one, tension t1 exerted by the lower block.

02:53 This lower block is stretching the string in downward direction.

02:58 And tension t2 due to this upper block.

03:06 And then weight of this row acting at its center of gravity and having a magnitude equal to 4g.

03:15 So here it becomes the free body diagram of the rope and finally free body diagram of the block of mass 5 .00 kilogram.

03:36 So again here, first of all, we draw this block having a mass of 5kg.

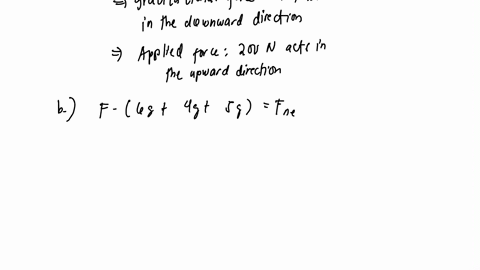

03:46 Then in upward direction there is a tension t due to this rope and in downward direction there is the weight of this block 5g which is the force applied by the earth on this block now in the second part of the problem we have to find net acceleration developed in this system so the total force the net force acting on it will be equal to to the force applied, subtracted the weight of all these three, two blocks and the one row.

04:30 So the net force, f net, will come out to be f minus 6 kg plus 4kg plus 5kg into g and that will be kept equal to using newton's second of motion m into a...
