The two blocks shown are originally at rest. Neglecting the...

Key Concepts

Newton's Second Law

Newton's Second Law forms the basis for analyzing the motion of objects, stating that the net force acting on an object is equal to the product of its mass and its acceleration. This law is applied to each block to relate the forces like gravity, tension, and any normal forces to the resulting acceleration of the system.

Free-body Diagrams

Free-body diagrams are essential tools for visualizing and identifying all forces acting on an individual object. By representing factors such as gravitational force, tension, and reaction forces graphically, these diagrams help in setting up the equations required for solving the motion of connected systems.

Constraint Relationships

Constraint relationships describe the connections between the motions of different parts in a system. When blocks are connected by an inextensible cable, the acceleration of one block is directly related to the acceleration of the other, which is key to forming the correct equations of motion for the system.

Tension in a Cable

The concept of tension involves the force transmitted along a cable or rope when it is pulled taut by forces at both ends. In idealized situations with massless and frictionless conditions, the tension is constant throughout the cable, which simplifies the analysis and helps in solving for unknowns like acceleration and cable tension.

Massless and Frictionless Pulleys

Assuming pulleys to be massless and frictionless eliminates the complications introduced by rotational inertia and frictional forces. This idealization means that the tension in the cable remains uniform throughout its length and the pulleys do not affect the dynamics of the system, thereby simplifying the problem to a straightforward application of Newton's laws.

Transcript

00:01 So in this problem, we have two blocks that are shown initially at rest, and we want to neglect the mass of the pulleys, the effect of friction in the pulleys, and the friction between block a and the incline.

00:10 And we want to find a, the acceleration of each block, and b the tension of the cable.

00:16 So the two blocks are shown initially at rest was in the figure, and we're given that the weight of block a is 200 pounds.

00:26 The weight of b is 300 pounds.

00:30 So to calculate the acceleration of each block and the tension is the tension is, you know, the cable, we have to first write the equation of the dependent motion between the two blocks is followed.

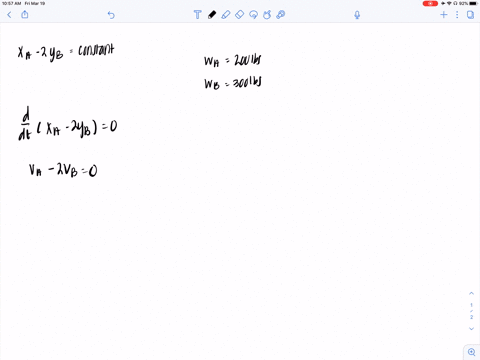

00:38 So we can see that that would be x of a minus 2y with b is equal to constant.

00:47 And then we want to take the derivative with respect to time to get the velocity, which will just leave us with b a minus 2 v b is equal to 0, and then we can take the derivative with time again to get the acceleration, which will give us acceleration of a minus 2, ab is equal to 0.

01:20 And here we can solve for the acceleration in b, which is just one half, the acceleration of a.

01:26 And we'll call this equation 1.

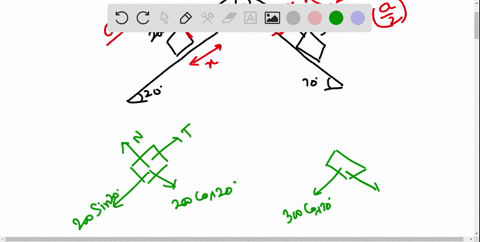

01:28 So now we want to draw a free body diagram and a kinetic diagram for each block to illustrate the forces acting on each block and the acceleration vector.

01:36 We can do this by looking at the figure and applying newton's law using equation 12 .8...
