The two methods of expressing bearing can be interpreted using a rectangular coordinate system. Suppose that an observer for a radar station is located at the origin of a coordinate system. Find the bearing of an airplane located at each point. Express the bearing using both methods. $$(5,0)$$

Key Concepts

Standard Angle Measurement Conventions

Standard angle measurement in mathematics typically involves angles measured counterclockwise from the positive x-axis. This convention is used widely in trigonometry and analytic geometry. By defining the initial side of the angle along the positive x-axis, it provides a natural and consistent method for describing directions in a coordinate plane.

Conversion Between Angle Conventions

The process of converting between the standard mathematical angle measurement (counterclockwise from the positive x-axis) and navigational bearing (clockwise from the north) is key in applications that require both geometric and navigational interpretations. Understanding this conversion is essential for accurately interpreting or communicating directional information in fields such as navigation, surveying, and engineering.

Rectangular Coordinate System

A rectangular coordinate system is a mathematical system for determining the location of a point in a plane by means of two perpendicular axes, typically labeled as the x-axis and y-axis. This system provides a framework for applying algebra and geometry to problems involving position and movement, which is essential in navigation and many areas of engineering and physics.

Navigation Bearing

Bearing in navigation refers to a method of expressing direction. It is commonly defined as the angle measured clockwise from the north direction to the line connecting an observer's position to a target. This approach is standard in marine and aeronautical navigation because it relates directly to the cardinal directions.

Transcript

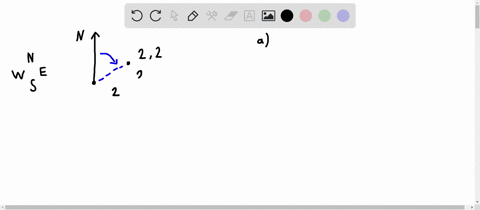

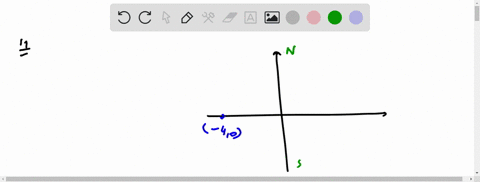

00:03 This problem explores the rectangular coordinate system and actually changing this to bearings that are used in the navy or in the air force and it gives you a sense of direction.

00:19 So we're going to get started with a question.

00:23 Let's say you're at the origin.

00:29 And let's say the boat that you're going to look at is going to be way out here.

00:35 And this is going to have the coordinate 10 -0.

00:45 Now this is the origin, right? so we're going to draw our axis here.

00:50 And this is our compass.

00:51 So this is going to be our north direction.

00:58 So if you want to express bearing, you can do it in two different ways.

01:06 So here is our first method, is you always take it with respect to the north axis.

01:14 So everything goes around this.

01:15 Way.

01:16 So you have a one direction this way and you only move to the right and you go around.

01:22 So in this case we're going to come down, right, this amount here, which is simply 90 degrees, right? because this is on the x -axis.

01:33 So this means that this is going to have a bearing of 90 degrees.

01:41 Now the second method is very similar, but this time it's always an acute angle, right? so it has to be less than 90 degrees or 90 degrees or less than that.

01:54 So that means that there are technically two acute angles that we can draw here, right? so we can draw one from the north, which will look like this.

02:06 And we can also draw one from the south, which will look like this...
