The two small spheres, each of mass m, and their connecting...

The two small spheres, each of mass $m$, and their connecting rod of negligible mass are rotating about their mass center $G$ with an angular velocity $\omega$. At the same instant the mass center has a velocity $v$ in the $x$ -direction. Determine the angular momentum $\mathbf{H}_{O}$ of the assembly at the instant when $G$ has coordinates $x$ and $y$.

Key Concepts

Decomposition of Angular Momentum

Angular momentum about a fixed point can be decomposed into two parts: one part due to the motion of the center of mass (the cross product of the position of the center of mass relative to the reference point and the total linear momentum), and a second part due to rotation about the center of mass (calculated using the moment of inertia and the angular velocity). This decomposition is key to analyzing rotational dynamics in systems with both translational and rotational components.

Moment of Inertia

The moment of inertia quantifies the resistance of a body to changes in its rotational motion about a given axis. In systems composed of discrete masses, it is calculated as the sum of the products of each mass and the square of its distance from the axis of rotation. For rotating assemblies, determining the moment of inertia about the center of mass is essential for computing the spin angular momentum.

Angular Momentum in Rigid Bodies

Angular momentum for a rigid body is the sum of the contributions from the translational motion of its center of mass and the rotation about its center of mass. When analyzing a system of particles or rigid bodies, it is important to consider both the orbital angular momentum (due to the movement of the center of mass relative to a chosen reference point) and the spin angular momentum (due to rotation about the center of mass).

Center of Mass

The center of mass is the weighted average position of the mass distribution of a system. In problems involving composite systems, such as multiple masses connected by a rod, the center of mass serves as a simplified point at which the total mass can be assumed to be concentrated. The overall translational motion of the system is characterized by the motion of its center of mass.

Transcript

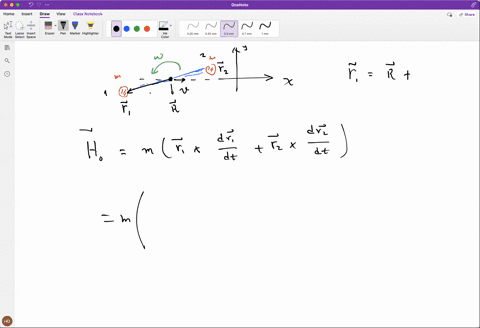

00:01 So here in this problem we are given with these two sphere that has a mass m and either these sphere are connected with this connecting road that has negligible weight and the system is rotating about the center of mass this point is g center of mass with the angular velocity of omega and the given instant it also have a linear velocity v as you can see here that is moving in the positive x x x is now we have to determine the angular momentum of the assembly at the given instant about this point o so the angular momentum about the point oh h0 will be equals to the angular momentum about point g with respect to o plus angular momentum of the mass a with respect to g just this point g plus the angular momentum of the ball b with respect to the point g so we have to these three terms now h g of of o is equals to the position vector rg cross the masses the masses are 2m so 2m times the velocity vg and vg we are given as v now let us calculate the the position vector first so position vector rg is equals to since the coordinate is x and y that is given the equation so rg would be x x cap plus y j cap so we can put the values now so this is rg is x i cap plus y j cap and the cross product with two masses as it is and vg we have v and the vector would be v i cap because it is along the x x xx is now okay we'll do we'll solve this and by using the determined method and we'll get our results to be minus two m vy k cap so this is the angular momentum of the system about point g now next i will be calculating h a of g now the angular momentum at a relative to point g h a of g is equals to the position the cross product of the position vector are a of g and the linear momentum that is the mass m and the velocity of of a with respect to the point g.

02:56 Now the position vector r a of g will be equals to this distance is r and let this angle be theta.

03:12 This angle is theta.

03:15 So this would be negative cosine theta i cap plus sine theta j cap.

03:25 Now the velocity of a with respect to g is omega cross r...
