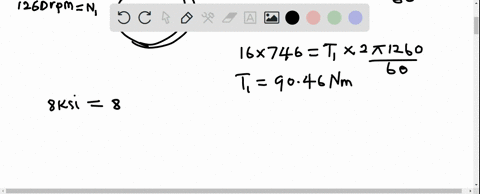

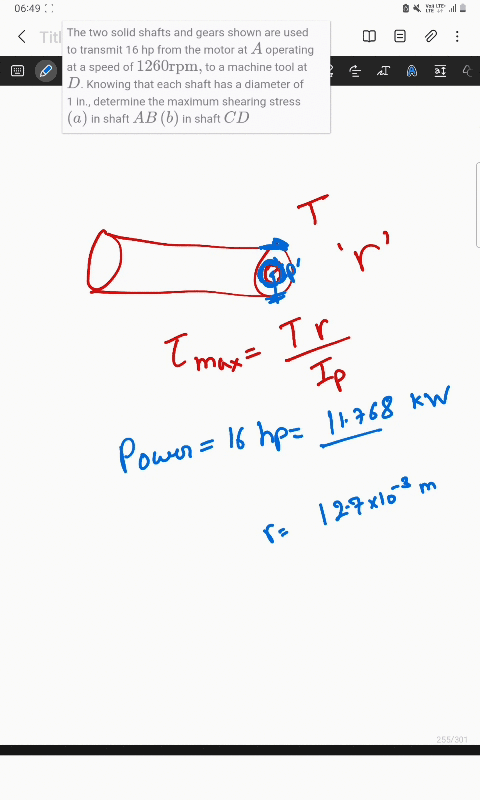

The two solid shafts and gears shown are used to transmit $16 \mathrm{hp}$ from the motor at $A$ operating at a speed of $1260 \mathrm{rpm}$ to a machine tool at $D$. Knowing that the maximum allowable shearing stress is $8 \mathrm{ksi}$, determine the required diameter of (a) shaft $A B,(b)$ shaft $C D$.

Key Concepts

Power Transmission in Rotating Shafts

This concept involves understanding how mechanical power is transmitted through rotating shafts. It includes the relationship between power, torque, and angular velocity. Converting power (e.g., in horsepower) and rotational speed (e.g., in rpm) into torque is essential for designing shafts that can handle the required load without failure.

Torsional Stress Analysis

Torsional stress results when a torque is applied to a shaft, causing it to twist. The analysis involves calculating the shear stress induced in the material using the formula ? = T*c/J, where T is the applied torque, c is the outer radius, and J is the polar moment of inertia. This ensures that the shaft's design remains below the material's allowable shear stress.

Polar Moment of Inertia

The polar moment of inertia, especially for circular shafts, is a geometric property that quantifies the shaft’s resistance to torsion. For solid circular shafts, it is given by J = (?/32)*d^4, where d is the diameter. This concept is fundamental in linking the applied torque to the resulting shear stress, thereby guiding the proper sizing of the shaft.

Material Allowable Stress

This concept refers to the maximum stress that a material can withstand without failure. In shaft design, the induced shear stress from torsion must not exceed the material’s allowable shear stress. Considering the allowable stress ensures that the designed shaft will operate safely under the applied loads.
