The two wires shown in Figure Pl9.48 carry currents of 5.00 A in opposite directions and are se

step 1 This problem covers the concept of the magnetic field produced by a current carrying wire and th

The two wires shown in Figure Pl9.48 carry currents of 5.00...

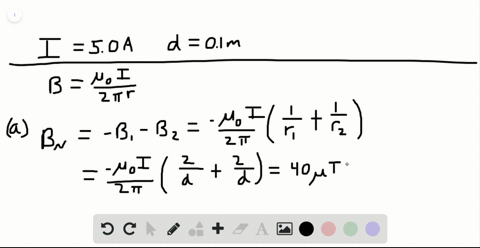

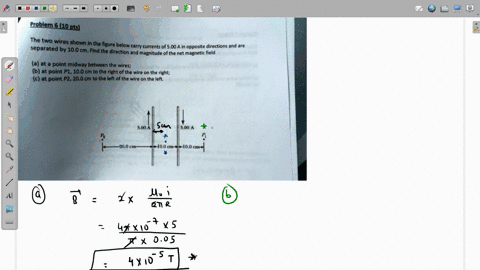

The two wires shown in Figure Pl9.48 carry currents of $5.00 \mathrm{~A}$ in opposite directions and are separated by $10.0 \mathrm{~cm}$. Find the direction and magnitude of the net magnetic field (a) at a point midway between the wires; (b) at point $P_{1}, 10.0 \mathrm{~cm}$ to the right of the wire on the right; and (c) at point $P_{2}, 20.0 \mathrm{~cm}$ to the left of the wire on the left.

The two wires shown in Figure Pl9.48 carry currents of $5.00 \mathrm{~A}$ in opposite directions and are separated by $10.0 \mathrm{~cm}$. Find the direction and magnitude of the net magnetic field (a) at a point midway between the wires;
(b) at point $P_{1}, 10.0 \mathrm{~cm}$ to the right of the wire on the right; and (c) at point $P_{2}, 20.0 \mathrm{~cm}$ to the left of the wire on the left.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Magnetic Field of a Long Straight Conductor

This concept explains that a long, straight current-carrying wire produces a magnetic field in the surrounding space, with a magnitude given by B = ??I/(2?r), where I is the current and r is the distance from the wire. This formula is fundamental in calculating the magnetic field's strength at any point due to a single straight conductor.

Right-Hand Rule

The right-hand rule is used to determine the direction of the magnetic field generated by a current-carrying wire. By pointing your thumb in the direction of the current, your curled fingers indicate the circular direction of the magnetic field around the wire, which is essential for analyzing the field directions from multiple wires.

Superposition Principle

This principle asserts that when multiple magnetic fields are present, the net magnetic field at any point is the vector sum of the individual fields produced by each source. This is critical when calculating the resultant field in regions where the magnetic fields from two or more wires overlap.
