The upper end of the open-link chain of length L and mass ρper unit length is released from rest

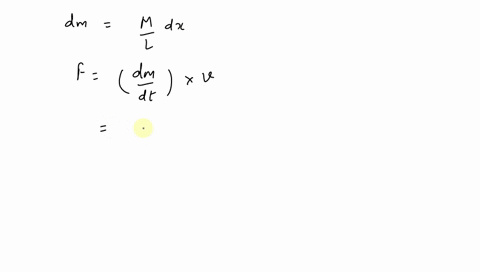

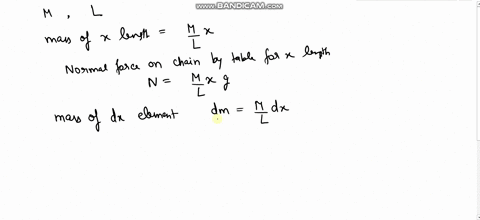

step 1 In this question, DM is small mass of chain of length L. This is equal to m by L into DX. Now F

The upper end of the open-link chain of length L and mass...

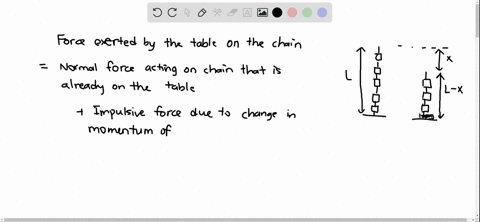

The upper end of the open-link chain of length $L$ and mass $\rho$ per unit length is released from rest with the lower end just touching the platform of the scale. Determine the expression for the force $F$ read on the scale as a function of the distance $x$ through which the upper end has fallen. (Comment: The chain acquires a free-fall velocity of $\sqrt{2 g x}$ because the links on the scale exert no force on those above, which are still falling freely. Work the problem in two ways: first, by evaluating the time rate of change of momentum for the entire chain and second, by considering the force $F$ to be composed of the weight of the links at rest on the scale plus the force necessary to divert an equivalent stream of fluid.)

Key Concepts

Force Decomposition

This involves breaking down the total force experienced by the scale into individual contributions: one part due to the static weight of the chain resting on the scale, and another part due to the dynamic effects associated with the incoming chain links and their momentum change. Analyzing forces in this decomposed manner permits a clearer understanding of how both gravitational and inertial effects combine to produce the net force reading.

Conservation of Mechanical Energy

In the context of a freely falling chain, conservation of energy is used to derive the relation between the distance fallen and the speed of the chain’s segments. The conversion of gravitational potential energy into kinetic energy gives rise to the free?fall velocity, which is pivotal in understanding the system’s dynamics prior to impacting the platform.

Free?Fall Kinematics

This concept involves understanding that objects in free fall, starting from rest under the influence of gravity, acquire a velocity that can be described by the equation v = ?(2gx), where x is the distance fallen. This relationship is key in determining the speed of parts of a system when they have been subject only to gravity, a fundamental aspect in analyzing dynamic systems under gravitational acceleration.

Variable Mass Dynamics

When analyzing systems where the mass involved in the motion changes with time (as more mass joins or leaves the moving part of the system), one must carefully apply Newton’s second law. The chain represents such a variable mass system since, as more of it comes to rest on the scale, the effective mass and momentum flux change with time, requiring a modified analysis of forces.

Momentum Flux and Rate of Change of Momentum

This concept deals with determining the net force on a system by considering the rate at which momentum changes. In systems where mass is added or diverted, such as a falling chain that is suddenly halted by a platform, the impact force is determined by evaluating the flux of momentum into the halted region, providing insight into how dynamic impacts contribute to measured forces.
