The wings of some beetles have closely spaced parallel lines...

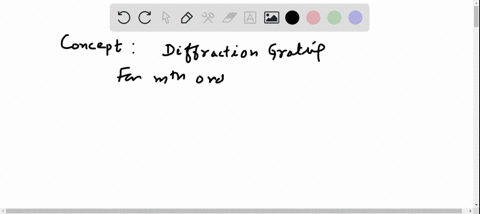

The wings of some beetles have closely spaced parallel lines of melanin, causing the wing to act as a reflection grating. Suppose sunlight shines straight onto a beetle wing. If the melanin lines on the wing are spaced $2.0 \mu \mathrm{m}$ apart, what is the firstorder diffraction angle for green light $(\lambda=550 \mathrm{nm}) ?$

Key Concepts

Wavelength and Grating Spacing Relationship

The relationship between the wavelength of light and the spacing of the grating determines the angle at which different wavelengths will constructively interfere. This principle is key in understanding how various colors of light are separated in spectroscopic applications.

Diffraction Equation

The diffraction equation, d sin ? = m?, relates the grating spacing (d), the diffraction angle (?), the order of the maximum (m), and the wavelength of the incident light (?). This formula is fundamental in analyzing how light is distributed after passing through or reflecting off a grating.

Diffraction Grating

A diffraction grating is an optical component with a regular pattern of lines or grooves that splits and diffracts light into several beams. When light interacts with the grating, the periodic structure causes interference, resulting in a spectrum of light at different angles corresponding to different wavelengths.

Constructive Interference

Constructive interference occurs when waves combine to produce a wave with higher amplitude. In the context of diffraction gratings, this happens when the path difference between light from adjacent lines is an integer multiple of the wavelength, leading to bright fringes known as maxima.

Diffraction Order

The diffraction order refers to the sequence of intensity maxima on either side of the central maximum, with the zeroth order being the direct reflection. The first order, for example, is the first bright fringe on either side of the central maximum and is obtained when the path difference equals one wavelength.
