The witch of Maria Agnesi The bell-shaped witch of Maria Agnesi can be constructed in the following way. Start with a circle of radius $1,$ centered at the point $(0,1),$ as shown in the accompanying figure. Choose a point $A$ on the line $y=2$ and connect it to the origin with a line segment. Call the point where the segment crosses the circle $B$ . Let $P$ be the point where the vertical line through $A$ crosses the horizontal line through $B .$ The witch is the curve traced by $P$ as $A$ moves along the line $y=2 .$ Find parametric equations and a parameter interval for the witch by expressing the coordinates of $P$ in terms of $t$ , the radian measure of the angle that segment $O A$ makes with the positive $x$ -axis. The following equalities (which you may assume) will help. $\begin{array}{ll}{\text { a. }} & {x=A Q} & {\text { b. } y=2-A B \sin t} \\ {\text { c. }} & {A B \cdot O A=(A Q)^{2}}\end{array}$

The witch of Maria Agnesi The bell-shaped witch of Maria
Agnesi can be constructed in the following way. Start with a circle

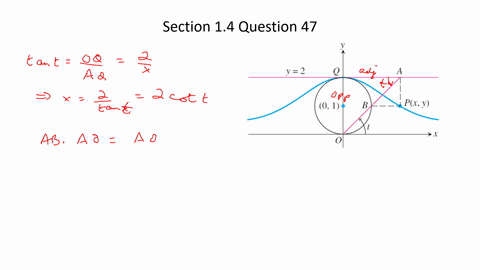

of radius $1,$ centered at the point $(0,1),$ as shown in the accompanying figure. Choose a point $A$ on the line $y=2$ and connect it to the origin with a line segment. Call the point where the segment crosses the circle $B$ . Let $P$ be the point where the vertical line
through $A$ crosses the horizontal line through $B .$ The witch is the
curve traced by $P$ as $A$ moves along the line $y=2 .$ Find parametric equations and a parameter interval for the witch by expressing the coordinates of $P$ in terms of $t$ , the radian measure of the angle that segment $O A$ makes with the positive $x$ -axis. The following equalities (which you may assume) will help.
$\begin{array}{ll}{\text { a. }} & {x=A Q} & {\text { b. } y=2-A B \sin t} \\ {\text { c. }} & {A B \cdot O A=(A Q)^{2}}\end{array}$

Key Concepts

Trigonometric Relationships

Trigonometric functions and identities bridge the gap between angular measures and linear coordinates. When a curve is constructed with a specific angle as its parameter, functions like sine, cosine, and tangent are used to relate angles to distances and coordinates, facilitating the conversion from a geometric description to an algebraic one.

Analytic Geometry

Analytic geometry provides the tools to translate geometric constructions into algebraic equations using coordinate systems. This subject integrates algebra and geometry to allow the derivation of equations for curves and shapes that are defined through geometric relations and intersections.

Parametric Equations

Parametric equations express a curve by defining both x and y coordinates in terms of a third variable (the parameter). This approach is particularly useful for curves that cannot be easily described by a single function, allowing one to capture the complete motion or shape of the curve as the parameter varies.

Geometric Construction of Curves

Geometric construction involves creating curves and shapes using basic geometric elements like circles, lines, and intersections. By analyzing how these elements interact—such as the intersections of a circle with a line or the projections of points—one can derive equations that describe the resulting curve.
