00:01

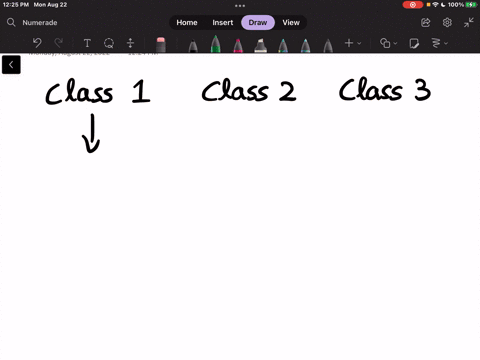

Hi everyone, so today we're going to be trying to match some histograms to its corresponding box plot.
00:05
And this is a really interesting question, actually.
00:07
And it's basically talking about three different classes that took the same test.
00:11
And we can see the distributions of the results for each of these three classes in the blue histograms here.
00:16
And then they also put the results of these classes into some box plots.
00:20
And we're going to try and match the appropriate histogram to the right box plot.
00:24
And so to start off with, what i'd like to look at is how symmetrical each of these distributions is.
00:28
We can see that all three of these are roughly unimodal, so they have one peak.
00:33
However, class one is most definitely symmetrical.
00:36
It's a classic shape, very bell curve like.
00:40
Class two is also pretty symmetrical.
00:43
If you look, we've got a very high peak in the centre and then two lower peaks, two higher peaks and then a lowerish peak.
00:49
So it is pretty centrally symmetric, whereas class three is not symmetric in the slightest.
00:55
But it's really negatively skewed.
00:57
And so you've got a much longer.
00:58
Tail down here.
01:00
And so what we can then do, looking at our box plots, is we can see using the interquartile range and the median, how skewed these distributions will be.
01:09
So where the median is roughly in the middle of the intercortile range, which is the case in a and also in b, we'd say that these are roughly symmetric.
01:16
Whereas with b, sorry, whereas with c, we can see the median is much higher in the intercortile range box.
01:22
And that's suggesting a skew.
01:24
And so that would suggest that c is, corresponds to class three.
01:29
There.
01:30
Now in the same way, we can use the intercortile range to make an estimate of whether this makes sense or not.
01:37
So the intercortar range indicates that half of the values sit between, you know, roughly 90 and sort of maybe 65...
