To extricate an SUV stuck in the mud, workmen use three...

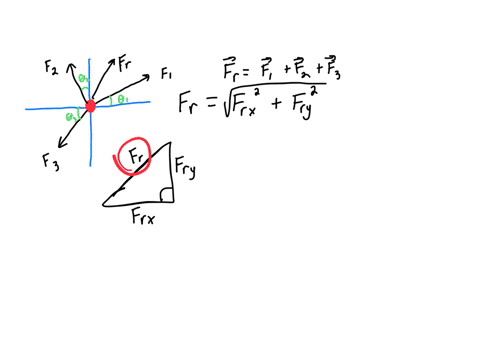

To extricate an SUV stuck in the mud, workmen use three horizontal ropes, producing the force vectors shown in Fig. E4.2. (a) Find the $x$ - and $y$ -components of each of the three pulls. (b) Use the components to find the magnitude and direction of the resultant of the three pulls.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Vector Decomposition

This concept involves breaking a vector into its perpendicular (usually horizontal and vertical) components. It allows one to analyze each component independently, using trigonometric functions such as sine and cosine, which is especially useful in resolving forces or motions into independent directions.

Coordinate System

A coordinate system, typically defined by x- and y-axes, is fundamental for vector analysis. It provides a reference frame to identify the direction of each component of a vector and ensures consistency when adding multiple vectors that may not be aligned in the same direction.

Vector Addition

Vector addition is the process of combining two or more vectors to determine their cumulative effect, known as the resultant vector. This is done by adding the corresponding components of each vector, which simplifies the process of determining overall magnitude and direction.

Resultant Vector Calculation

Once the individual components of multiple vectors are summed, the resultant vector is determined by using the Pythagorean theorem to compute its magnitude and using inverse trigonometric functions, such as the arctangent, to determine its direction relative to the chosen coordinate axes.
