To fit a contact lens to a patient's eye, a keratometer can...

To fit a contact lens to a patient's eye, a keratometer can be used to measure the curvature of the front surface of the eye, the cornea. This instrument places an illuminated object of known size at a known distance $p$ from the cornea. The cornea reflects some light from the object, forming an image of the object. The magnification $M$ of the image is measured by using a small viewing telescope that allows comparison of the image formed by the cornea with a second calibrated image projected into the field of view by a prism arrangement. Determine the radius of curvature of the cornea for the case $p=30.0 \mathrm{cm}$ and $M=0.0130$ .

Key Concepts

Keratometry

Keratometry is the measurement of the curvature of the cornea, usually by analyzing the properties of the reflected image from a known object. This technique is critical in contact lens fitting and corneal assessments, as it offers quantitative information about the shape of the cornea, which is essential for diagnosing and correcting refractive errors.

Spherical Mirror Optics

Spherical mirror optics involves the study of image formation by curved reflective surfaces that have a constant radius of curvature. In the context of a keratometer, the cornea is treated as a reflective spherical surface (specifically a convex mirror) whose geometry is used to relate object distance, image distance, and the mirror’s curvature.

Focal Length and Radius of Curvature Relation

For a spherical mirror, the focal length is directly related to the radius of curvature by the relation f = R/2. This relationship is pivotal when using the mirror equation because it allows one to determine the focal length – and hence the radius of curvature – from the measured distances and magnifications in the optical system.

Magnification in Mirror Imaging

The magnification in mirror imaging is defined as the ratio of the image size to the object size, and in the case of a mirror, it is also related to the ratio of the image distance to the object distance. This parameter is essential in keratometry because measuring the magnification of the reflected image helps infer the image distance, which, when combined with the mirror equation, allows one to calculate the radius of curvature of the cornea.

Transcript

00:01 So in order to find the curvature of your cornea, in order to use contact lenses and get the right lenses for your eyes, there's an object that's placed in front of your cornea at a certain distance, and the image that's formed by this object is measured, and it uses this calibration to find out what's the right curvature for your contact lenses.

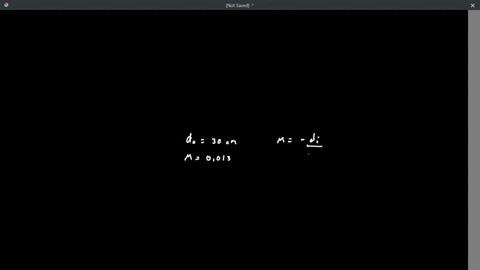

00:30 So in this problem we have an object that's a distance away from a cornea, and it's given that this distance here is p equals to 30 centimeters.

00:46 And it's known that the magnification of the image, as measured by the equipment, is 0 .013.

01:01 So these are the two given quantities that we have in order to solve this problem.

01:05 Problems asking us to find the radius of curvature of this person's cornea.

01:13 So what we do is we'll just use the equations that we know from this chapter, like the mirrors equation, the equation for magnification in order to solve for the radius of curvature.

01:28 And we're going to treat the cornea as a curved mirror in this case.

01:33 So we're going to use the fact that for curved mirrors, the focal length is equal to r over 2, where r is the radius of curvature of the mirror, of the curved mirror.

01:55 So if we wanted to solve for the curved mirror, we would know that r is equal to two times the focal length.

02:01 So given this information, let's go ahead and start to solve this problem here.

02:07 The first thing that we need to do is to find the object, or sorry, the image length.

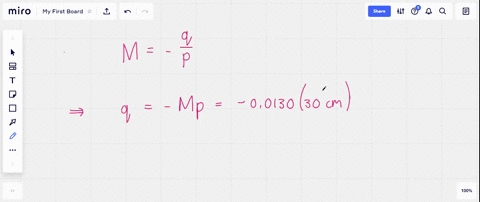

02:13 And we can find that using the magnification formula, or m is equal to minus q over p, where q is the image length and p is our object length, which is given to us as 30 centimeters.

02:32 So q is equal to minus m p, and those two quantities we will.

02:41 Know so we'll just substitute them in 0 .013 for the magnification and we have 30 centimeters for our object length and the answer that we get here is minus 0 .39 centimeters now when we do problems with in with optics or any kind of optical equipment we have to figure out where is our positive lengths and where are our negative lengths.

03:24 So p was our object and our object was to the left of the mirror.

03:29 So to the cornea, which we're treating as a curved mirror.

03:32 So the object, since it's to the left of the curved mirror here, we're treating this as a positive distance.

03:39 So p is positive and i'll just draw a line to connect the two.

03:49 Between the object and the cornea, it's positive.

03:53 P is greater than zero here.

03:57 So to the left of the curved mirror, we get a positive length.

04:03 To the right of the mirror, we get a negative length.

04:07 So the negative image distance that we have here minus 0 .39 centimeters, it means that the image is being formed behind the eye.

04:17 It's being formed behind where you have your retina and it's being basically going toward the brain.

04:27 The image is formed behind this mirror, this curved mirror.

04:32 So i'll just put image distance up here, q, which is less than zero.
