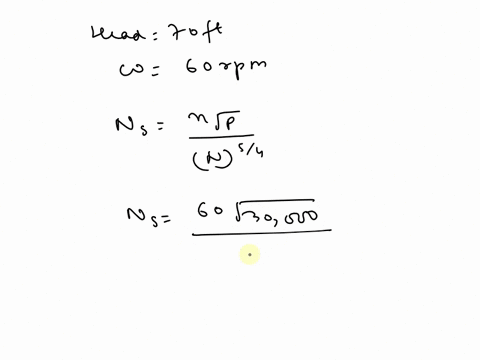

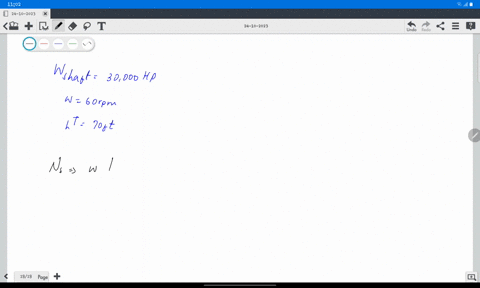

Turbines are to be designed to develop 30,000 horsepower while operating under a head of $70 \mathrm{ft}$ and an angular vebcity of $60 \mathrm{rpm} .$ What type of turbine is best suited for this rurpose? Estimate the flowrate needed

Key Concepts

Flow Rate Calculation

Estimating the flow rate needed for a particular power output involves balancing the energy equation where the power generated is a function of the product of the water’s weight flow, the gravitational head, and the efficiency of the turbine. By rearranging the formula for hydraulic power, one can calculate the required volume flow rate to achieve a desired horsepower, given a specific head and expected efficiency.

Angular Velocity

Angular velocity, or rotational speed, is the rate at which the turbine’s runner turns, and it influences the design and efficiency of the turbine. It must be matched to the turbine geometry so that the blade design properly interacts with the water flow, ensuring optimal energy extraction. Lower rotational speeds are generally associated with larger turbines, whereas high speeds may be found in smaller, more specialized designs.

Hydraulic Head

This is the vertical distance that water falls, which directly affects the potential energy available to be converted to mechanical power. In turbine applications, the head combined with the flow rate determines how much energy can be harnessed from the water, making it a crucial parameter in the design and selection of the turbine type.

Turbine Type Selection

Choosing the appropriate turbine type is critical to efficiently convert the energy in water into mechanical work. In general, impulse turbines are used for high-head, low-flow conditions while reaction turbines, such as the Francis turbine, are preferable for moderate head and flow conditions. With a head of 70 ft and a rotational speed of 60 rpm, a Francis turbine is often best suited since it is designed to operate efficiently under these medium head conditions.
