Two blocks of masses M1 and M2 are connected by a massless...

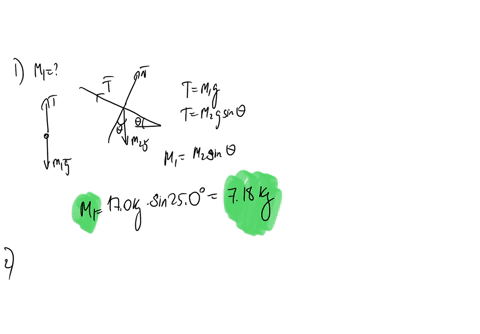

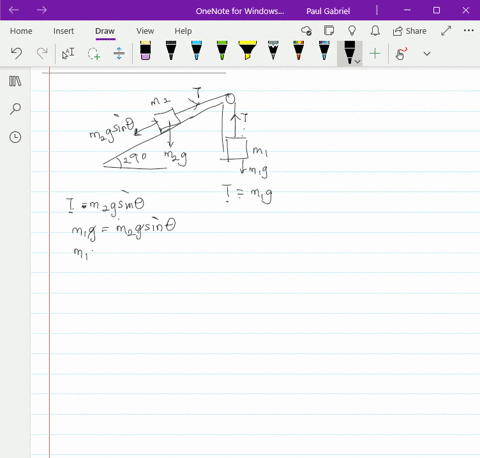

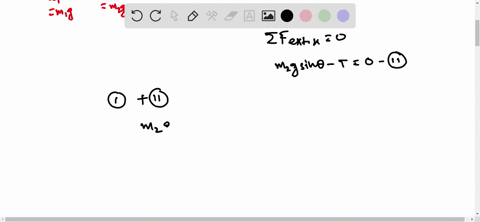

Two blocks of masses $M_{1}$ and $M_{2}$ are connected by a massless string that passes over a massless pulley (Figure 4-33). $M_{2}$, which has a mass of $20.0 \mathrm{~kg}$, rests on a long ramp of angle $\theta=30.0^{\circ} \theta=30.0^{\circ}$. Friction can be ignored in this problem. (a) What is the value of $M_{1}$ for which the two blocks are in equilibrium (no acceleration)? (b) If the actual mass of $M_{1}$ is $5.00 \mathrm{~kg}$ and the system is allowed to move, what is the magnitude of the acceleration of the two blocks? (c) In part (b) does $M_{2}$ move up or down the ramp? (d) In part (b) how far does block $M_{2}$ move in $2.00$ s? Example 4-9

Key Concepts

Equilibrium

This concept refers to a state in which all forces acting on an object cancel out, resulting in no net acceleration. In mechanics, setting up the equilibrium condition typically involves setting the sum of forces (or torques) equal to zero, which is useful when analyzing systems where the motion or deformation is static.

Newton's Second Law

Newton's Second Law states that the net force acting on an object is equal to the mass of the object multiplied by its acceleration (F = ma). This principle is fundamental in dynamics for determining the acceleration of an object when a known net force is applied, and it is especially important in systems involving connected masses.

Free-Body Diagram

A free-body diagram is a visual representation used to isolate an object and depict all external forces acting upon it. This tool is essential for systematically applying Newton's laws to solve problems in mechanics, as it helps in identifying and resolving forces, including gravitational components and tension in connected systems.

Components of Gravitational Force on an Inclined Plane

When analyzing motion on an inclined plane, it is necessary to resolve the gravitational force into components parallel and perpendicular to the surface of the incline. The component along the incline determines the acceleration of a sliding object, while the perpendicular component influences the normal force.

Kinematics

Kinematics involves the study of motion without considering its causes. It includes the use of equations that relate displacement, velocity, acceleration, and time. These equations are essential for determining how far an object moves, or its final velocity, when it undergoes uniform acceleration.
