Two disks each have a mass of 5 kg and a radius 300 mm ....

Key Concepts

Moment of Inertia

Moment of inertia is a property of a body that quantifies its resistance to changes in its rotational motion about a given axis. It depends on the mass distribution relative to the axis of rotation and is a key parameter in calculating both angular momentum and the dynamic response of the system. Accurate knowledge of the moment of inertia is essential for predicting how an object will respond to applied torques and accelerations.

Rotating Reference Frames

Rotating reference frames are coordinate systems that are in rotation relative to an inertial frame. Analysis in such frames requires accounting for fictitious forces, such as centrifugal and Coriolis forces, which arise due to the non-inertial nature of the frame. This approach is particularly important in problems where bodies are subject to multiple rotations, as it facilitates the understanding of observed dynamics and the computation of reaction forces in the system.

Dynamic Reaction Forces

Dynamic reaction forces are the forces exerted by supports or connections that arise from the acceleration, deceleration, or changes in the motion of a body. In systems involving rotating components, such as spinning disks mounted on a rotating rod, these forces are generated by the combined effects of centrifugal forces, Coriolis effects, and the inertial resistance of the bodies. Understanding these reactions is crucial for ensuring that supports are designed to withstand the loads imposed by dynamic conditions.

Rigid Body Dynamics

Rigid body dynamics is the study of the motion of objects that do not deform under the influence of forces. It involves analyzing both the translational and rotational motions of bodies through appropriate equations that relate forces, torques, mass, and moments of inertia. This framework is essential when assessing how bodies respond to applied loads, including the calculation of reaction forces at supports and constraints.

Angular Momentum

Angular momentum is the measure of the rotational motion of a body, taking into account its moment of inertia and angular velocity. It is a conserved quantity in an isolated system and plays a critical role in analyzing the effects of rotations, particularly when the axis of rotation changes or when there are additional forces or torques acting on the system. Its vector nature means that both magnitude and direction must be considered in dynamic analyses.

Angular Velocity

Angular velocity is a vector quantity that describes the rate of rotation of an object around a specific axis. In problems involving multiple rotations, such as a spinning disk mounted on a rotating rod, the overall motion is characterized by the vector addition of the individual angular velocities. This concept helps in understanding how different rotational motions combine to affect the dynamics of the system.

Gyroscopic Effects

Gyroscopic effects arise when a spinning object, such as a disk, exhibits resistance to changes in the orientation of its rotation axis. This behavior is due to the conservation of angular momentum and leads to phenomena such as precession. In systems where the orientation is altered by an external rotation, these effects are fundamental in predicting the resulting reaction forces and torques.

Transcript

00:01 Hello friends here it is given two discs each having the mass of 5 kg and radius 100mm spin as shown at the rate of 1500 rpm about a rod ab of negligible marks rod ab rotates about the vertical axis at the rate of 45 rpm in the first part we have to calculate dynamic reactions at c &d in second part direction of spin of disk v is reverse, then how much will be dynamic reactions at c and d? let us start doing it, calculating angular momentum of each disk about its center of mass.

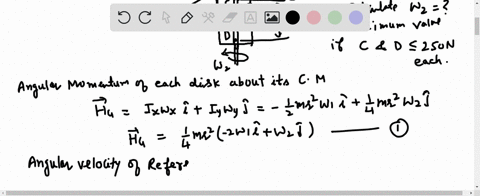

00:49 Let us see an angular momentum of each disc about its center of mass, i .x, omega x, i cap, i y omega y j cap moment of inertia of the disk half mr square omega x is along negative x axis i cap plus 1 by 4 mr square omega 2 j cap so it can be written as you may take 1 by 4 mr square common so it may be written as minus twice of omega 1 i cap plus omega 2 j cap say this is equation 1 now rate of change of angular momentum we have to calculate so angular velocity of reference frame g x by z omega which is omega 2 j cap so rate of change of angular momentum of each disc about its center of mass rate of change of angular momentum in the reference frame g x by z plus cross product of omega and edge this value is zero because it is rotating with constant angular velocity omega 2 j cap cross 1 by 4 mr square twice of omega 1 i cap plus omega 2 j cap now simplify it we will write rate of change of angular momentum this would be half mr square omega 1 omega 2 k cap this is your second equation now we are geometrical diagram we are drawing for calculating moment a b, c and d.

05:05 This is dynamic reaction c.

05:09 This is the dynamic reaction d.

05:27 This will be rate of change of angular momentum at a.

05:35 This is the rate of change of angular momentum at b...
