Two equal positively charged particles are at opposite...

Key Concepts

Electric Field

The electric field is a vector field that represents the force a unit charge would experience at various points in space. It is computed using the relationship E = kq/r² for point charges, where k is Coulomb's constant, q is the charge, and r is the distance from the charge. This concept is fundamental in understanding how charges influence the space around them.

Coulomb's Law

Coulomb's law gives the magnitude of the electric force between two point charges and is the basis for calculating the electric field produced by a single charge. The law states that the force between two charges is directly proportional to the product of the charge magnitudes and inversely proportional to the square of the distance between them, which translates into the expression for the electric field when considered per unit charge.

Superposition Principle

The superposition principle is the idea that the total electric field created by multiple charges is the vector sum of the individual fields produced by each charge. This concept is crucial when dealing with problems that involve more than one charge, as it allows one to calculate the net electric field at a specific point by adding up the contributions from each charge independently.

Vector Addition and Decomposition

Since the electric field is a vector quantity, its calculation involves both magnitude and direction. Vector addition and decomposition are techniques used to break down individual electric field contributions into their components along chosen coordinate axes, so they can be summed accurately. This is particularly important in geometries where the charges are arranged asymmetrically or with specific geometric orientations, such as on the corners of a trapezoid.

Transcript

00:02 Okay, so point p should experience two electric view.

00:05 One is e1, another one is e2.

00:07 E1 is the electric view due to positive charge from the left side of the point p.

00:12 Okay, and the distance between the positive charge on the left side to point p is d.

00:16 And e2 is the electric view due to the positive charge from the lower right corner, positive charge.

00:21 Okay? and the distance between point p and the positive charge from the lower right corner is about square two over 2d.

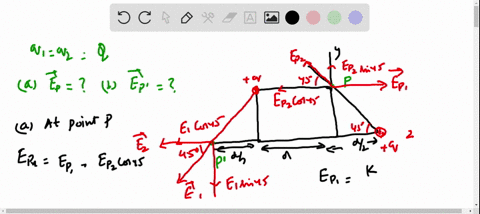

00:28 Okay, it's because let's take a look at the picture of the trapezoid here.

00:35 As you can tell, so the dash line and the black lines here on the triangle here, which is the right triangle with the same size, and each side has a length of d over 2.

00:49 Okay? and then the longest side, which is the distance between the positive charge from the lower right corner to the point p.

01:00 Should be square root d over two square plus d over two square.

01:05 Inventually we'll have square two over two d.

01:07 So distance between point p and the positive charge from the lower right corner should be square root two over two d.

01:16 So we know the positive direction for this case is the positive axis and the y -axis.

01:24 So the direction to the right is the positive direction around the horizontal direction.

01:28 And the direction going upward is the positive axis positive direction for the vertical direction.

01:34 So therefore, we know the total electric view at down point p is e1 plus e2.

01:39 And we know the angle here is 45 degree.

01:43 And therefore, we know e1 is simply good e1 times i vector, because e1 is along the x -axis and point to the positive direction.

01:52 So therefore, it's equal to k -e -q over d squared times i vector.

01:56 And e2 has two vectors.

01:58 One is i -vactor and now one is j vector...
