Two fire towers are 30 kilometers apart, where tower $A$ is due west of tower $B .$ A fire is spotted from the towers, and the bearings from $A$ and $B$ are $\mathrm{N} 76^{\circ} \mathrm{E}$ and $\mathrm{N} 56^{\circ} \mathrm{W},$ respectively (see figure). Find the distance $d$ of the fire from the line segment $A B .$

Key Concepts

Bearings and Their Conversion

Bearings are directional measurements typically given as angles measured clockwise from North. Converting these bearings into standard angles relative to the coordinate axes or converting them into slopes is essential when setting up the geometric or trigonometric framework of a problem.

Trigonometric Functions

Trigonometric functions such as sine, cosine, and tangent are vital in relating angles to side lengths in triangles, whether in right triangles or in solving more complex geometric configurations. They allow the computation of distances or angles once relationships between parts of a triangle are established.

Law of Sines

The Law of Sines is used in oblique (non-right) triangles to relate the ratios of the lengths of sides to the sines of their opposite angles. This algebraic relation is particularly useful in triangulation problems where two or more observations determine an object's position.

Distance from a Point to a Line

Finding the perpendicular distance from a point to a line is a common practical problem in geometry and trigonometry. This concept involves determining the minimum distance between a point and a given line, often using trigonometric relations or coordinate geometry.

Intersection of Lines and Triangulation

Triangulation involves determining the position of a point by measuring angles from two or more known points, leading to the intersection of lines of sight. This method is fundamental in navigation, surveying, and locating positions based on directional bearings.

Transcript

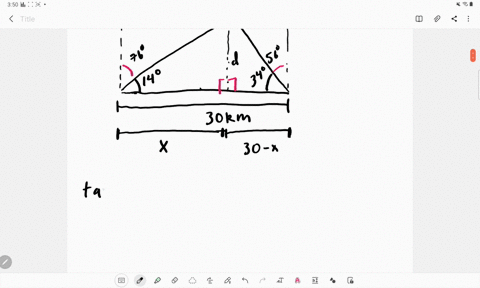

00:01 So we have two towers.

00:04 We have a is west of b.

00:07 And we know that they are 30 kilometers apart.

00:12 And we know that if we go north, 76 degrees east from a.

00:20 So here's north.

00:22 And we go 76 degrees east.

00:25 So this is supposed to be 76 degrees.

00:28 So this angle would be 14 degrees.

00:30 Then we get to this fire.

00:32 We'll call it f.

00:34 And from tower b, we know that the fire is north, 56 degrees west.

00:43 So north, and then we have to venture 56 degrees west.

00:49 And obviously that will move the point f there, since that's the way we're just going to make the diagram.

00:56 And i have not made this to scale by any means at all.

00:59 So we know that this angle, because these two are complements, has to be 34 degrees.

01:06 And we want to find out how far the fire is from this segment ab.

01:12 And so we'll call that little d, but we won't find that to begin with.

01:17 So we know this big angle, if we take the sum of these two, 14 and 34, add up to 48 degrees.

01:25 And then we find the supplement of that, we find out that this big angle, has to end up being 132 degrees.

01:33 Now, we know a side angle pair, so we can use law of signs.

01:39 And we need to find either this segment or this segment.

01:43 We either need a, f, or fb.

01:46 And so the strategy will be to find one of these two, and then we can work with this right triangle because that's the distance is on a right triangle.

01:54 So not that it matters.

01:57 Well, let's find x.

01:58 So we know x is to the sign of the angle opposite, and the angle opposite is 34 degrees in this big triangle, as 30 kilometers is to the sign of the angle opposite.

02:15 And the angle opposite 30 kilometers is this 132 degrees.

02:22 So we can multiply a sign of 34 degrees times 30, or i'll show it, if we multiply both sides by the sign of 34 degrees, these will cancel...
