Two measures of center are marked on the density curve...

Two measures of center are marked on the density curve shown. (a) The median is at the yellow line and the mean is at the red line. (b) The median is at the red line and the mean is at the yellow line. (c) The mode is at the red line and the median is at the yellow line. (d) The mode is at the yellow line and the median is at the red line. (e) The mode is at the red line and the mean is at the yellow line.

Two measures of center are marked on the density curve shown.
(a) The median is at the yellow line and the mean is at the red line.
(b) The median is at the red line and the mean is at the yellow line.
(c) The mode is at the red line and the median is at the yellow line.
(d) The mode is at the yellow line and the median is at the red line.
(e) The mode is at the red line and the mean is at the yellow line.

Key Concepts

Mean

The mean is the arithmetic average of all values in a distribution and is sensitive to extreme values, which can pull it in the direction of skewness. It is calculated by dividing the sum of all data values by the number of values.

Median

The median is the middle value in an ordered data set and represents the point at which half the values lie below and half lie above. In a density curve, it is the value that divides the total area under the curve into two equal parts.

Mode

The mode is the most frequently occurring value in a data set and corresponds to the highest point (peak) on a density curve. It represents the value around which the data are most concentrated.

Density Curve

A density curve is a graphical representation of the distribution of a continuous variable, where the area under the curve is equal to one. The shape of the density curve helps in understanding the data’s distribution, including its center, spread, and skewness.

Skewness in Distributions

Skewness refers to the asymmetry in the distribution of data. In skewed distributions, the mean, median, and mode do not coincide, with their relative positions indicating the direction of the skew.

Transcript

0:00 All right.

00:01 And this is the instance.

00:02 We're looking at a density curve and where the mean is gonna be at where the media is going to be at and where the mode is going to be at and and um i don't know the actual density curve here but it's a pretty simple process.

00:15 Pretty simple concept.

00:16 So we're gonna look at it um in several different density curves that are common and what those might look like um for the one that we are asking about here.

00:28 Okay, well the first type of density curve that we might have is something that looks kind of approximately normal, symmetric and in this case it's a very special case.

00:41 All right.

00:41 The we'll put our red line and we'll put a um yellow line as well.

00:51 Okay.

00:51 Right beside that because in this case it is a special case.

00:55 The main is going to be in the middle because it is symmetric.

00:58 So it is a good measure of center.

01:01 The median is also going to be in the middle.

01:04 All right.

01:04 The median is the 50th%ile of our data and also the mode is going to be in the middle of our data.

01:11 So those three things are going to be equal when you're dealing with a symmetric um density curve.

01:17 The mean median and mode are all centered at the at the middle of the mean being the average, the median being the 50th%ile which you can see that splits the stat density curve into two equal halves.

01:30 And then the mode is the tallest part of your density curve, the most likely outcome.

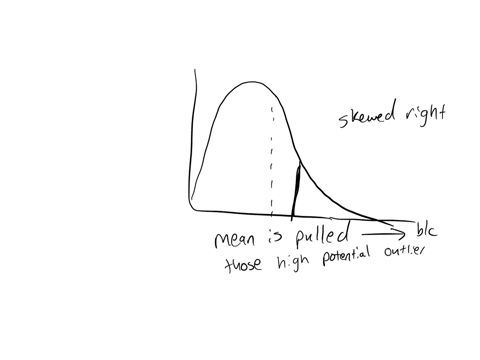

01:34 So another density curve that you might see is one that is skewed to the right.

01:38 So your tail is going to the right what this might look like here let's say um well do yellow and then i'll do red and then i'll pick a different color green to go here...
