Two particles, each of mass m and speed v, travel in opposite directions along parallel lines se

Two particles, each of mass m and speed v, travel in...

Key Concepts

Symmetry and Direction Reversal

Symmetry considerations are important in problems involving rotational motion as they can lead to cancellations or enhancements of angular momentum contributions. Reversing the direction of motion of one particle, for example, can change the sign of its momentum, thereby affecting the cross product with its position vector and altering the net angular momentum. Such symmetry arguments often simplify the analysis by revealing underlying invariances or dependencies in the system.

System of Particles

In systems composed of multiple particles, the total angular momentum is the vector sum of the angular momenta of the individual particles. This additive property allows for a breakdown of complex rotational motion into contributions from simpler particles. Each contribution is computed using the individual particle’s position (with respect to the chosen reference point) and momentum, taking into account both magnitude and direction.

Angular Momentum

Angular momentum is a fundamental quantity in mechanics that characterizes the rotational motion of an object or a system of objects. It is defined as the cross product of the position vector (relative to a chosen point) and the linear momentum vector of the object. This quantity determines how the distribution of mass and velocity about a point affects the rotational behavior and is conserved in a closed system, provided no external torques act on it.

Vector Cross Product

The vector cross product is an operation between two vectors in three-dimensional space that results in a third vector perpendicular to the plane containing the first two. In the context of angular momentum, the cross product of the position and momentum vectors results in a vector that points along the axis of rotation, with its magnitude proportional to the rotational effectiveness or torque. This operation highlights the directional properties of angular momentum and how position and momentum interact in rotational dynamics.

Reference Point Dependence

The calculation of angular momentum depends explicitly on the choice of the reference point (or origin). Changing the point about which angular momentum is calculated can alter individual contributions from particles, although the overall physical behavior may be analyzed by considering the center of mass and other invariants. When symmetry exists in the system, like having one point specifically midway between paths, the expressions can simplify significantly.

Transcript

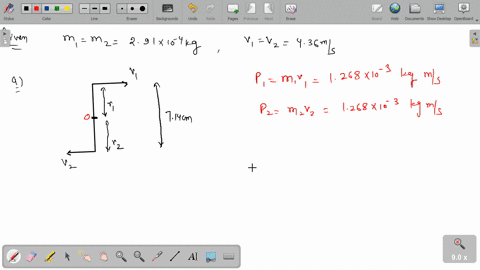

00:01 Okay, so here we have these two particles, both msm traveling in opposite directions with a speed of v.

00:07 So the top m is going this way, the bottom end is going that way.

00:11 And we need to figure out what the total rotational momentum will be for the two particles around a point directly midway between the two lines.

00:21 So a point that is d over two away from both of them.

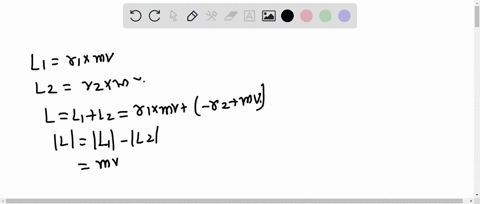

00:25 So we're going to add together the rotational momentum of the top part and the rotational momentum of the bottom one.

00:37 And so this is going to be m times the r cross v for the top.

00:44 And then plus this is top and top plus m r cross v for the bottom as well.

00:53 So they both have m, so we're going to factor that out right off the bat.

01:00 Now, r for the top is negative d over 2, and v is in the negative x direction.

01:09 So they're both negative, so they're going to end up being positive when you multiply them together, and their angle between them is 90 degrees, so you're just going to end up with r times v.

01:28 Which since r is d over 2, you can just go ahead and plug that in.

01:33 So we have d over 2 times v.

01:37 Now over here we have the bottom.

01:39 So here we have a positive d over 2 and a positive v.

01:45 So we're going to get r, which is d over 2 times v like that.

01:51 Now these are the same.

01:52 So we're going to add them together that gets rid of the 2s.

01:54 We get m, d, v, for our angular momentum.

02:01 A rotation element.

02:05 Now let's look at letter b.

02:07 Letter b asks us to analyze if we take a point that is not midway between the line.

02:17 So let's just throw a point.
