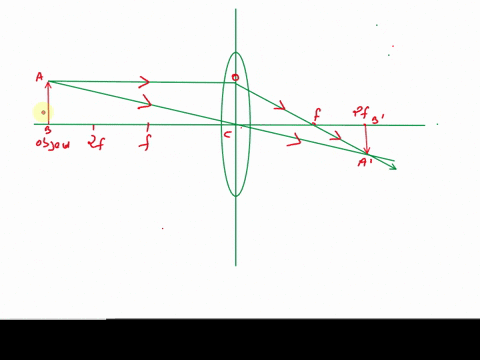

Two rays are shown in the sketch that accompanies footnote 3, repeated here. Discuss whether the

step 1 In this picture, you have a lens, you have an image, I'm sorry, an object, two light rays coming

Two rays are shown in the sketch that accompanies footnote...

Key Concepts

Geometrical Optics

Geometrical optics is the branch of physics that describes light propagation in terms of rays. It simplifies the analysis of light by tracing paths—rays—which indicate the direction of light travel. These rays help in understanding the behavior of light when it interacts with optical elements such as lenses and mirrors, allowing us to predict where images will form.

Ray Diagrams

Ray diagrams are graphical methods used in geometrical optics to represent the paths that light rays take as they pass through optical devices like lenses or mirrors. The diagram uses a set of representative rays to locate the position, size, and orientation of the image. They are a conceptual tool to illustrate how light is refracted or reflected as it travels through the system.

Principal Rays

Principal rays are key rays chosen in ray diagrams because of their simplified paths through optical systems. For example, one common principal ray is one that travels parallel to the optical axis and then passes through the focal point after refraction. The intersections of these principal rays after interacting with the lens or mirror indicate the location of the image. It is important to note that these rays are representative of many rays and are used to determine image characteristics rather than composing the entire image.

Image Formation

Image formation in optics refers to the process by which an image is produced by the convergence (or apparent divergence) of rays after they interact with an optical element like a lens. The intersection point of two or more representative rays in a ray diagram indicates the location of the image. This process demonstrates that the drawn rays are a tool for determining where the image lies relative to the lens, not necessarily the actual physical rays that contribute all the light forming the image.
