Two resistors, one having a resistance of 145 Ω, are connected in parallel to produce a total re

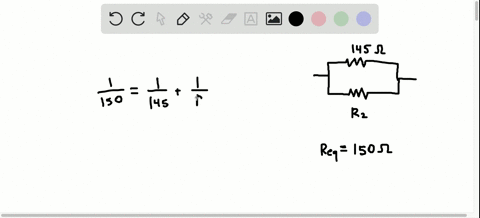

step 1 So to start off the question, we are already given that one of the resistance R1 is 145 oms. It'

Two resistors, one having a resistance of 145 Ω, are...

Two resistors, one having a resistance of $145 \Omega$, are connected in parallel to produce a total resistance of 150 $\Omega$. (a) What is the value of the second resistance? (b) What is unreasonable about this result? (c) Which assumptions are unreasonable or inconsistent?

Key Concepts

Modeling Assumptions in Circuit Analysis

When analyzing circuits, it is assumed that the components behave ideally according to their defined laws, such as Ohm's Law for resistors. The situation given in the question exposes conflicting assumptions: the measurement of a total parallel resistance that is greater than one of the individual resistors suggests an inconsistency. This could stem from measurement error, misapplication of the formulas, or the neglect of non-ideal behaviors and interactions between circuit elements. Recognizing such assumptions is critical for valid circuit design and analysis.

Negative Resistance

Negative resistance is a concept wherein an increase in voltage across an element leads to a decrease in current through it, which is contrary to the behavior of standard passive resistors. In the analysis of parallel circuits, obtaining a negative resistor value (as in the given problem) is a signal that the assumptions or measurements are inconsistent with physical reality, because real resistors made of conventional materials cannot have a negative resistance.

Parallel Resistance

This concept refers to the way resistors combine in a parallel circuit. The formula for resistors in parallel is 1/R_total = 1/R_1 + 1/R_2 + ... + 1/R_n, which shows that the equivalent resistance of a parallel connection is always less than the resistance of the smallest individual resistor, provided all resistances are positive. This is a basic principle in circuit analysis used to simplify circuits and determine total current flow.

Equivalent Resistance Calculation

The process of calculating the equivalent resistance using the reciprocal formula is fundamental to circuit theory. It involves taking the reciprocal of the sum of the reciprocals of the individual resistances. In practice, this means that if all resistors are positive, the overall resistance will always be lower than the smallest resistor in the branch. If a calculation yields a result that doesn't follow this rule, it indicates an error or a special condition in the assumptions.
