Question
Two voltage measurements made across the same resistance are $V_{1}=110 \mathrm{~V}$ and $V_{2}=220 \mathrm{~V}$. Calculate the power gain in decibels of the second reading over the first reading.
Step 1
We can use the formula for power, which is P = V^2 / R, where P is power, V is voltage, and R is resistance. Since the resistance is the same for both readings, we can just compare the squares of the voltages. Power ratio = (V2^2) / (V1^2) = (220^2) / (110^2) = Show more…
Show all steps
Your feedback will help us improve your experience
Christopher Stanley and 71 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Calculate the power gain in decibels for each of the following cases. a. Po = 100 W, Pi = 5 W. b. Po = 100 mW, Pi = 5 mW. c. Po = 100 mW, Pi = 20 μW. Determine GdBm for an output power level of 25 W. Two voltage measurements made across the same resistance are V1 = 110 V and V2 = 220 V. Calculate the power gain in decibels of the second reading over the first reading.

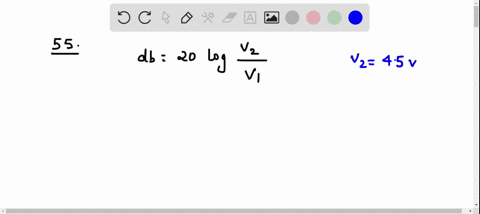

Volume and decibels When the volume control on a stereo system is increased, the voltage across a loudspeaker changes from $V_{1}$ to $V_{2},$ and the decibel increase in gain is given by $$ \mathrm{db}=20 \log \frac{V_{2}}{V_{1}} $$ Find the decibel increase if the voltage changes from 2 volts to 4.5 volts.
