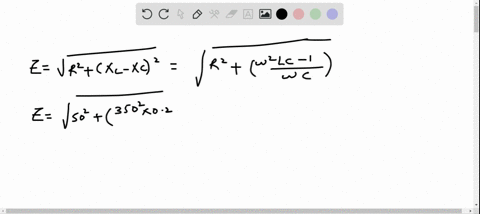

step 1 So for part A, we can say that the inductive reactants minus the capacitive reactants would be e

Un voltaje de CA de la forma Δv=90.0 sen 350 t, donde Δv...

Un voltaje de CA de la forma $\Delta v=90.0 \operatorname{sen} 350 t$, donde $\Delta v$ está en volts y $t$ en segundos, es aplicado a un circuito RLC en serie, Si $R=50.0 \Omega, C=25.0 \mu \mathrm{F}$ y $L=0.200 \mathrm{H}$, encuentre (a) la impedancia del circuito, (b) la corriente rms en el circuito, y (c) la potencia media entregada al circuito.

Key Concepts

Reactance

In AC circuits, reactance is the opposition offered by capacitors and inductors to changes in current. Inductive reactance (XL) increases with frequency, while capacitive reactance (XC) decreases with frequency. Their difference, often represented as a net reactance in a series circuit, influences the phase relationship between voltage and current and ultimately the impedance.

RMS (Root Mean Square) Values

The RMS value of an AC voltage or current is a statistical measure that represents the equivalent direct current (DC) value which would produce the same power dissipation in a resistive load. It is crucial for calculating power in AC circuits, as it provides a consistent basis for comparing the effective voltages or currents regardless of their instantaneous sinusoidal fluctuations.

AC Circuit Analysis

This concept involves studying the behaviour of circuits when the driving voltage and currents vary sinusoidally with time. It includes the use of phasor representations and complex numbers to simplify calculations with sinusoidal functions, which is fundamental when analyzing how these circuits respond over time.

Impedance in RLC Circuits

Impedance is the overall opposition that a circuit presents to the flow of alternating current. In a series RLC circuit, the impedance is a complex quantity that includes the effects of resistance (which dissipates energy) and reactance (which stores and releases energy), combining both inductive and capacitive components. Calculating this impedance is essential for understanding the circuit’s behavior at a given frequency.

Average Power in AC Circuits

Average power in AC circuits is the time-averaged value of the instantaneous power over a complete cycle. It is calculated using the RMS values of voltage and current along with the power factor, which accounts for the phase difference between them. This measure is vital for determining the real work done by the AC system, as opposed to energy that is cyclically stored and returned to the circuit.
