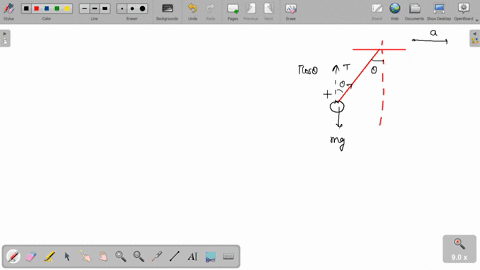

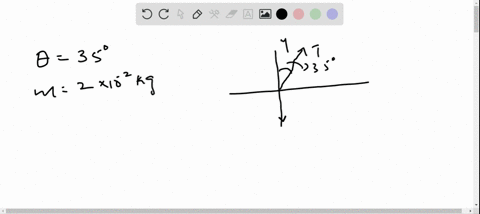

Una bola de 20,0 g cuelga del techo de un vagón de carga mediante una cuerda. Cuando el vagón de carga comienza a moverse, la cuerda hace un ángulo de $35,0^{\circ}$ con la vertical. (a) ¿Cuál es la aceleración del vagón? (b) ¿Cuál es la tensión de la cuerda?

Key Concepts

Newton's Second Law

This principle states that the net force acting on an object is equal to the product of its mass and its acceleration. It is foundational in analyzing the dynamics of objects, including cases where multiple forces are in play, such as gravity, tension, and pseudo forces in accelerated systems.

Free-Body Diagram and Force Decomposition

Creating a free-body diagram helps in visualizing all the forces acting on an object. By breaking down these forces into their horizontal and vertical components, one can set up equations based on the equilibrium conditions (or net force) in each direction, which is essential for solving for unknown quantities like acceleration or tension.

Non-Inertial Reference Frames and Pseudo Forces

When analyzing systems in an accelerating frame (a non-inertial reference frame), a pseudo force must be included to account for the effects of the acceleration. This approach allows us to apply equilibrium analysis as if the system were at rest, simplifying the determination of force magnitudes and directions.

Trigonometric Relationships in Equilibrium

Trigonometry is used to relate the components of forces when the forces are not aligned with the standard coordinate axes. In cases like a pendulum in an accelerating system, the angle of the rope with the vertical is directly related to the ratio of the horizontal pseudo force to the gravitational force, enabling the calculation of acceleration.

Tension Force in Ropes

The tension in the string or rope is the force transmitted through it when it is pulled tight by forces acting from opposite ends. Understanding how this force balances both the weight of the object and the additional horizontal force due to acceleration is key to solving for the tension under non-equilibrium conditions in each direction.
