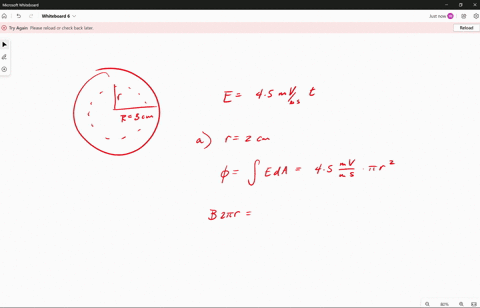

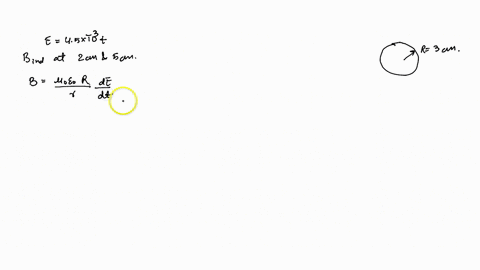

Uniform electric field. In Fig. $32-30,$ a uniform electric field is directed out of the page within a circular region of radius $R=3.00$ $\mathrm{cm} .$ The field magnitude is given by $E=\left(4.50 \times 10^{-3} \mathrm{V} / \mathrm{m} \cdot \mathrm{s}\right) t$ where $t$ is in seconds. What is the magnitude of the induced magnetic field at radial distances (a) 2.00 $\mathrm{cm}$ and (b) 5.00 $\mathrm{cm} ?$

Uniform electric field. In Fig. $32-30,$ a uniform electric field is directed out of the page within a circular region of radius $R=3.00$
$\mathrm{cm} .$ The field magnitude is given by $E=\left(4.50 \times 10^{-3} \mathrm{V} / \mathrm{m} \cdot \mathrm{s}\right) t$ where $t$ is in seconds. What is the magnitude of the induced magnetic
field at radial distances (a) 2.00 $\mathrm{cm}$ and (b) 5.00 $\mathrm{cm} ?$

Key Concepts

Symmetry in Electromagnetic Induction

Symmetry considerations are essential in solving electromagnetic problems efficiently. When a system exhibits symmetrical properties, such as circular symmetry in a region with a uniformly time-varying electric field, the induced magnetic field can often be expressed using simplified, piecewise functions. This approach allows the determination of field distributions both inside and outside the region by exploiting the inherent symmetry of the physical setup.

Ampere-Maxwell Law

The Ampere-Maxwell law extends Ampere's circuital law by including the displacement current term. It relates the circulation of the magnetic field along a closed path to both conduction currents and the time rate of change of the electric flux. This law is critical in analyzing situations where a time-varying electric field produces an induced magnetic field, even in the absence of conduction currents.

Displacement Current

Displacement current is a concept introduced by Maxwell to account for the effect of a time-varying electric field in producing magnetic fields. It is defined as the product of the vacuum permittivity and the time derivative of the electric field. This term acts as a source of magnetic fields in the Ampere-Maxwell law, ensuring the continuity of current in regions where no physical charge current exists.
