Unusual points Each of the four scatterplots that follow...

Unusual points Each of the four scatterplots that follow shows a cluster of points and one "stray" point. For each, answer these questions: 1) In what way is the point unusual? Does it have high leverage, a large residual, or both? 2) Do you think that point is an influential point? 3) If that point were removed, would the correlation be- come stronger or weaker? Explain. 4) If that point were removed, would the slope of the re- gression line increase or decrease? Explain.

Unusual points Each of the four scatterplots that follow shows a cluster of points and one "stray" point. For each, answer these questions:
1) In what way is the point unusual? Does it have high leverage, a large residual, or both?
2) Do you think that point is an influential point?
3) If that point were removed, would the correlation be- come stronger or weaker? Explain.
4) If that point were removed, would the slope of the re- gression line increase or decrease? Explain.

Key Concepts

Regression Slope

The slope of a regression line represents the estimated change in the response variable for a one-unit change in the predictor variable. Unusual points (such as outliers with high leverage or large residuals) can alter the slope dramatically. Removing an influential point can lead to an increase or decrease in the slope, depending on whether the point was pulling the line upward or downward away from the true underlying trend.

Correlation

Correlation is a statistical measure that describes the strength and direction of the linear relationship between two variables. Outlying observations, like unusual points in a scatterplot, can distort this relationship. Removing such points may either strengthen or weaken the correlation, depending on whether they exaggerate or obscure the underlying association.

Large Residual

A large residual occurs when the difference between the observed response value and the value predicted by the regression model is unusually high. This indicates that the point does not fit the overall pattern of the data well, suggesting that either the model is not capturing the relationship or the point is an outlier.

Influential Point

An influential point is one that significantly affects the parameters of the regression model, such as the slope and intercept. These points can change the model’s predictions substantially if they are included or removed. Influence is determined by a combination of leverage and the size of the residual; a point that is both a high leverage and has a large residual is most likely to be influential.

High Leverage

A high leverage point is an observation that has a predictor value far from the average value of that predictor in the dataset. Such points can pull the regression line toward themselves because they have a disproportionate ability to influence the location and orientation of the fitted regression line, even if their response value is not unusual.

Transcript

00:01 So the question here basically gives us four different graphs here, and it wants us to determine the following.

00:07 So what we know to prelude this question is that what we know about the scatter plots are that these will show a cluster of points, and there will be one quote -unquote straight point here.

00:21 So it wants us to answer the following.

00:22 So one is going to be in what way is the point unusual? does it have a large residual, high leverage, or both? two, do we think that the point is an influential point, indicating does this essentially affect where our regression line is going to be placed? for three here, it asks if points were, if the point was removed, would the correlation become stronger or weaker? and for four here, if the point were removed, would the slope or the regression line increase or decrease? so for the first graph here, to answer question.

00:55 We know that there is going to be a large leverage so again a leverage is essentially the power of the graph here and in this particular sense as we have a large leverage indicating that the power is high as well as we have a large residual indicating that there's a lot of points we can essentially say it's both so it's going to have a large leverage here for two here, it's not going to be influential, as if we have this point here, it doesn't really make a difference in a regression line.

01:34 For three here, if we remove it, would the correlation become weaker, stronger or weaker? so it will become weaker due to the fact that essentially it helps us corroborate to this line and the points better.

01:48 For four here, if the point was removed, then the slope would therefore not be changed, as it's pretty much in the middle of the line here.

01:55 So it's going to be unchanged.

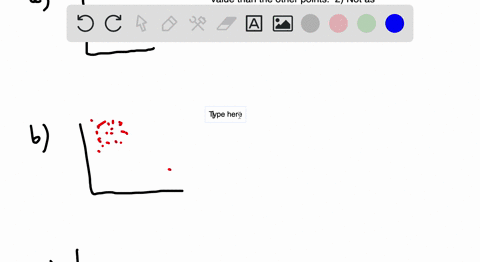

01:57 For b here, let's go through it.

01:59 For b, one, we're going to have a large leverage here, similar to the explanation for a.

02:05 For two here, as this point does have an influence on our overall regression line, it's going to be influential.

02:11 For three here, if we remove the influential curve, then therefore our regression line will be weaker.

02:18 And lastly, for four here, if we remove this point, then our slope or regression slope would therefore decrease.

02:27 Or increase rather, as the lines would be better placed with respect to the data points...
