Question
Use a ray diagram to find the location and magnification of the image of an object located three focal lengths from a converging lens.
Step 1
We place the object three focal lengths away from the lens. We draw three rays: one parallel to the axis which refracts through the focal point on the other side of the lens, one through the center of the lens which continues straight, and one through the focal Show more…
Show all steps
Your feedback will help us improve your experience
Sarah Mccrumb and 87 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

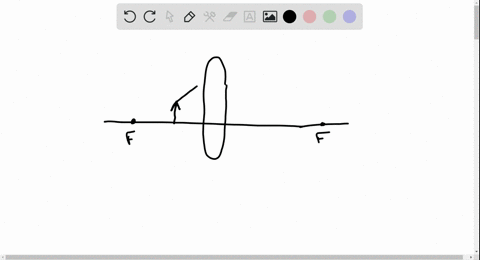

An object is located midway between the other focal point and the center of a converging lens. Draw a ray diagram showing how you locate the image. Estimate the magnification of the image from your diagram.

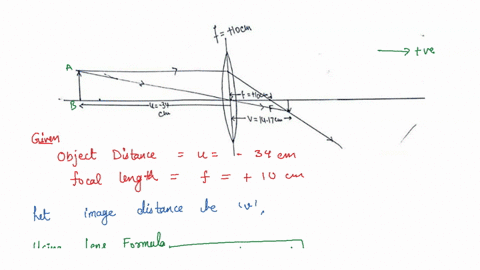

Use a scale ray diagram to find the image position of an object that is 34 cm to the left of a convex lens with a 10-cm focal length.

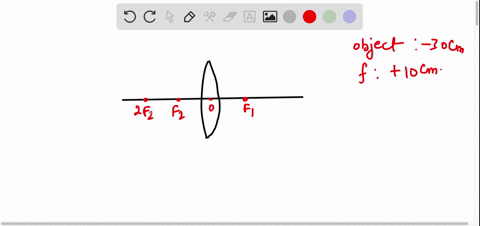

Use a scale ray diagram to find the image position of an object that is $30 \mathrm{cm}$ to the left of a convex lens with a 10 -cm focal length.
