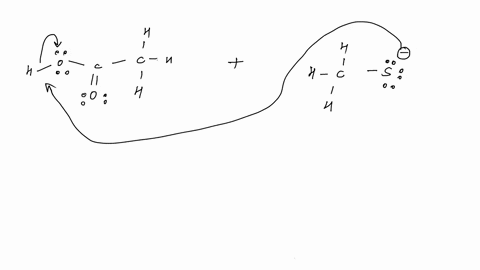

Use curved arrows to show the movement of electrons in the following reaction steps. (Hint: Look at the reactants and look at the products and then draw the arrows to convert the reactants to products.) SOLUTION TO 15 a. From the products we see that the doubly bonded oxygen gains a proton and $\mathrm{H}_{3} \mathrm{O}^{+}$ loses a proton with oxygen retaining the electrons it shared with the proton. Now we need to draw the arrows that result in those products. Notice that the oxygen that gained a proton became positively charged and that the oxygen that lost a proton is no longer positively charged.

Use curved arrows to show the movement of electrons in the following reaction steps. (Hint: Look at the reactants and look at the products and then draw the arrows to convert the reactants to products.)
SOLUTION TO 15 a. From the products we see that the doubly bonded oxygen gains a proton and $\mathrm{H}_{3} \mathrm{O}^{+}$ loses a proton with oxygen retaining the electrons it shared with the proton. Now we need to draw the arrows that result in those products. Notice that the oxygen that gained a proton became positively charged and that the oxygen that lost a proton is no longer positively charged.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Curved Arrow Notation

Curved arrow notation is a symbolic method used in organic chemistry to represent the movement of electron pairs during chemical reactions. Arrows point from the source of electrons (nucleophilic regions) to regions that are electron-deficient (electrophilic sites), thus providing a clear visual pathway for bond-making and bond-breaking during reaction steps.

Electron Flow in Reaction Mechanisms

Electron flow refers to the directional movement of electrons throughout a reaction mechanism. Understanding how electrons migrate—from electron-rich to electron-poor sites—helps predict which bonds will form or break and explains the formation of intermediates and products.

Proton Transfer in Acid-Base Reactions

Proton transfer is a key concept in acid-base chemistry where a proton (H+) is shifted between species. This process illustrates how molecules interact by donating or accepting protons, often illustrated in mechanisms by the movement of electrons that accompany the change, and is essential for understanding the stabilization of charged intermediates.
