Use representations [A] through [1] in Figure P 5.10 to answer questions a-f. a. Which compounds

Use representations [A] through [1] in Figure P 5.10 to...

Use representations $[\mathrm{A}]$ through [1] in Figure $\mathrm{P} 5.10$ to answer questions a-f. a. Which compounds contain delocalized $\pi$ electrons? b. Which compounds contain a $\pi$ bond but not delocalized $\pi$ electrons? c. Of $[\mathrm{B}],[\mathrm{E}],$ and $[\mathrm{H}],$ which is/are planar? d. Locate the chiral carbon atom(s). e. Compare the hybridization of the sulfur atoms in [D] and [G]. f. $[\mathrm{C}]$ is a CFC (chlorofluorocarbon) responsible for the destruction of the ozone layer. How is [F] related to [C]? (FIGURE CANNOT COPY)

Use representations $[\mathrm{A}]$ through [1] in Figure $\mathrm{P} 5.10$ to answer questions a-f.
a. Which compounds contain delocalized
$\pi$ electrons?
b. Which compounds contain a $\pi$ bond but not delocalized $\pi$ electrons?
c. Of $[\mathrm{B}],[\mathrm{E}],$ and $[\mathrm{H}],$ which is/are planar?
d. Locate the chiral carbon atom(s).
e. Compare the hybridization of the sulfur atoms in [D] and [G].
f. $[\mathrm{C}]$ is a CFC (chlorofluorocarbon) responsible for the destruction of the ozone layer. How is [F] related to [C]? (FIGURE CANNOT COPY)

Key Concepts

Environmental Impact of CFCs

Chlorofluorocarbons (CFCs) have been recognized as substances that contribute to the depletion of the Earth's ozone layer. The chemical properties of CFCs allow them to break down in the stratosphere, releasing chlorine atoms that catalytically destroy ozone molecules. Understanding this mechanism is important in environmental chemistry and policy-making for protecting the ozone layer.

Hybridization

Hybridization describes the mixing of atomic orbitals in an atom to form new hybrid orbitals that can form sigma bonds and help accommodate lone pairs. Comparing hybridization in atoms like sulfur reveals differences in bonding and geometry; different hybridization states can influence the reactivity, bond angles, and overall molecular structure of the compounds.

Chirality

Chirality refers to the property of a molecule that makes it non-superimposable on its mirror image, typically due to the presence of one or more chiral centers (often asymmetric carbon atoms). Chiral molecules can exhibit optical activity, meaning they rotate plane-polarized light, which is significant in many chemical and biological contexts.

Molecular Planarity

Planarity in molecular structures is crucial for the effective overlap of p orbitals, which is required for delocalization of ? electrons. A planar structure enables contiguous p orbitals to align perfectly, facilitating resonance and electronic delocalization across the molecule, whereas non-planar geometries can inhibit these interactions.

Localized ? Bonds

A localized ? bond is a double bond where the ? electrons are confined between the two atoms involved in the bond. These electrons are not spread over multiple atoms, meaning they contribute to the molecule’s reactivity differently compared to delocalized ? electrons and do not provide the same level of resonance stabilization.

Delocalized ? Electrons

This concept involves the sharing of ? electrons over more than two adjacent atoms in a molecule. Unlike localized bonds, delocalized electrons are spread out, allowing stabilization through resonance, which often leads to unique chemical and physical properties such as enhanced stability, lower reactivity, and specific spectroscopic characteristics.

Transcript

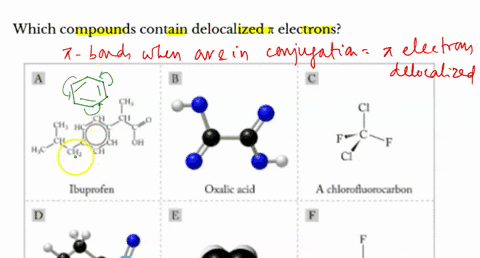

00:01 The first question in number 10 is which compounds contain delocalized electrons.

00:06 Delocalized electrons are pi electrons that can be placed in different locations and still have the octet rule be satisfied and all of the valence electrons be placed appropriately.

00:26 This can occur if multiple resonant structures can be written for the molecule.

00:32 And it turns out that although many molecules in question number 10 have pi bonds, only a and i have pie bonds in a benzene ring that are going to be delocalized and could be found between differing pairs of carbon atoms in that benzene ring.

00:58 The benzene ring is the ring that contains six carbon atoms, which is present in compounds a and i.

01:07 Question b asks which compounds contain pi bond.

01:12 Compounds contain a pi bond, but are not delocalized pi electrons.

01:17 Well, that would correspond to any of the other molecules that contain pi bonds present in the group of nine molecules.

01:26 So that would be b.

01:31 If you draw the lewis structure for e, you will see that there's a double bond between the two carbons.

01:38 G and h.

01:42 Contain only non -delocalized pi electrons.

01:47 Question c is of b, e, and h, which is our planar.

01:54 Let's look at b first.

01:56 It turns out that b has two carbons that are sp2 hybridized and our trigonal planar.

02:02 Those are the central carbons, forcing most of the molecule to be planer.

02:07 However, there are two c -single bond o bonds.

02:14 We'll call them just c -o bonds that can rotate.

02:19 And they could rotate so that the hydrogen atoms are within the plane defined by the two carbon atoms or out of the plane.

02:28 So b could be planer if the co bonds are rotated so that the hydrogen atoms are in the plane defined by the carbons.

02:40 Then let's look at e...
