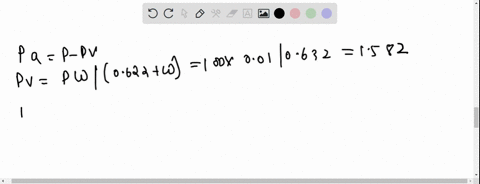

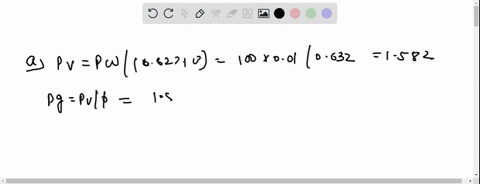

Use the formulas and the steam tables to find the missing property of: Φ, ω, and Tdry, for a tot

step 1 Hi, everybody. So we're asked for A, repeat the answers. You have the psychomatic chart for A an

Use the formulas and the steam tables to find the missing...

Key Concepts

Psychrometrics

Psychrometrics is the study of the thermodynamic properties of moist air and the relationships between temperature, moisture content, and air pressure. It provides a framework to analyze air-water vapor mixtures, which is essential for applications such as air conditioning, HVAC system design, and meteorology.

Relative Humidity

Relative humidity is defined as the ratio of the actual partial pressure of water vapor present in the air to the saturated vapor pressure at the same temperature, expressed as a percentage. It is a key indicator of how much moisture is in the air relative to the maximum it can hold at that temperature.

Humidity Ratio

The humidity ratio, also known as the moisture content or mixing ratio, is the mass of water vapor per unit mass of dry air. It is a critical parameter in quantifying the amount of water vapor present in the air and is used along with other psychrometric properties to analyze and design air-handling processes.

Dry-Bulb Temperature

The dry-bulb temperature is the measure of the air temperature as determined by a standard thermometer exposed to the air but shielded from moisture and radiant heat. It serves as the primary temperature reading in psychrometric calculations and is essential for determining other air properties.

Wet-Bulb Temperature

The wet-bulb temperature is the lowest temperature that can be reached by evaporative cooling of a water-wetted surface. It provides an indication of the moisture content of the air and is used, along with the dry-bulb temperature, to determine other psychrometric properties like relative humidity and humidity ratio.

Steam Tables

Steam tables provide thermodynamic data for water and steam, including properties such as saturation pressure, specific volume, enthalpy, and entropy at various temperatures and pressures. They are used in psychrometric calculations to determine the saturation properties of water which are essential for calculating relative humidity and other parameters.

Psychrometric Chart

The psychrometric chart is a graphical representation of the thermodynamic properties of moist air. It plots variables such as dry-bulb temperature, wet-bulb temperature, relative humidity, and humidity ratio, allowing engineers and scientists to easily visualize and compute the various properties and processes occurring in air-water vapor mixtures.

Total Pressure

Total pressure in the context of psychrometrics refers to the sum of the partial pressures of the dry air and water vapor components in a mixture. It is crucial for accurately determining the partial pressure of water vapor, which in turn affects calculations involving relative humidity and saturation properties.
