Use the thin lens equation to show that the transverse...

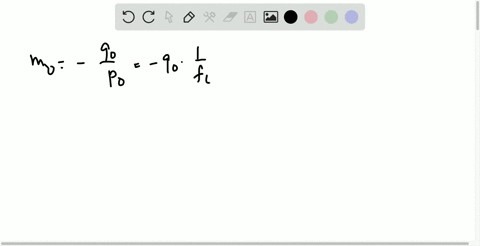

Use the thin lens equation to show that the transverse magnification due to the objective of a microscope is $m_{\mathrm{o}}=-L / f_{\mathrm{o}}$. [Hints: The object is near the focal point of the objective; do not assume it is at the focal point. Eliminate $p_{\mathrm{o}}$ to find the magnification in terms of $q_{\mathrm{o}}$ and $f_{\mathrm{o}}$. How is $L$ related to $q_{\mathrm{o}}$ and $f_{\mathrm{o}}^{\bar{?}]}$

Key Concepts

Thin Lens Equation

The thin lens equation, expressed as 1/f = 1/p + 1/q, is fundamental in describing how lenses form images. It relates the object distance (p), the image distance (q), and the focal length (f) of a lens. This equation is crucial in understanding image formation in various optical systems, including microscopes, and is used to derive relationships between system parameters.

Transverse Magnification

Transverse magnification is defined as the ratio of the image height to the object height and is often given by m = -q/p for a thin lens. The negative sign indicates that the image is inverted relative to the object. This concept is essential for quantifying how much larger or smaller the produced image is compared to the original object, particularly in microscope objectives.

Objective Lens in Microscopy

In a microscope, the objective lens is responsible for capturing light from the specimen and forming a real, magnified image. Its focal length and the positioning of the specimen (object distance close to the focal point) directly affect the magnification. This component is key to understanding the imaging process and the subsequent calculation of overall magnification in the microscope system.

Optical Tube Length

The optical tube length (denoted as L) is the fixed distance between the objective lens and the image plane (where the intermediate image is formed) in a microscope. It is an important design parameter that, when combined with the focal length of the objective lens, determines the transverse magnification of the system. The relationship m? = -L/f? emerges when considering the geometric constraints imposed by the fixed tube length and the imaging properties of the objective lens.
