Use the values obtained in Problem 19.54 to sketch a curve of [H3 O^+] vs. mL of added titrant.

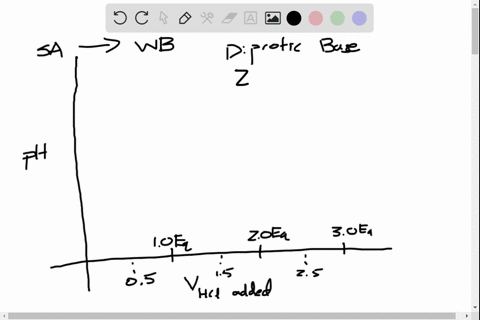

step 1 Here I'll draw the curve. On the left side of the axis, we'll have the concentration of hydroniu

Use the values obtained in Problem 19.54 to sketch a curve...

Use the values obtained in Problem 19.54 to sketch a curve of $\left[\mathrm{H}_{3} \mathrm{O}^{+}\right]$ vs. $\mathrm{mL}$ of added titrant. Are there advantages or disadvantages to viewing the results in this form? Explain.

Key Concepts

Acid-Base Titration

Acid-base titrations involve the gradual addition of a titrant to a solution to determine the concentration of an analyte by monitoring changes in acid–base properties. The titration curve is a graphical representation of the change in a measurable parameter (such as pH or [H3O+]) as a function of the volume of titrant added. This concept is central to understanding neutralization processes, the identification of equivalence points, and the behavior of buffer regions.

Equivalence Point and Buffer Region

The equivalence point in a titration is reached when the amount of added titrant exactly reacts with the analyte, often resulting in a rapid change in pH or [H3O+]. The buffer region, which occurs before the equivalence point, is where the solution resists changes in pH due to the presence of appreciable amounts of both the weak acid and its conjugate base. Understanding these regions is critical for interpreting titration curves and predicting the behavior of the system during titration.

pH and [H3O+] Relationship

The pH of a solution is defined as the negative logarithm of the hydronium ion concentration, pH = -log[H3O+]. This logarithmic relationship means that changes in [H3O+] are not linear in terms of their impact on pH. Recognizing this relationship is essential when deciding whether to plot the titration data using the pH scale or directly using [H3O+], since each presentation can highlight different aspects of the titration curve.

Graphical Representation of Titration Data

The choice of plotting [H3O+] versus added titrant volume, rather than pH versus volume, affects how the data is visually interpreted. A plot of [H3O+] (which is on a linear scale) makes it possible to see actual concentration changes, but it can also obscure the significant pH changes near the equivalence point because of the logarithmic nature of the pH scale. Therefore, understanding this concept helps in evaluating the advantages and disadvantages of each type of graphical representation.

Advantages and Disadvantages of Different Plot Scales

Using [H3O+] versus titrant volume offers a direct depiction of species concentration but may be less intuitive when it comes to understanding the dramatic pH shifts typical in titration endpoints. In contrast, pH versus volume plots inherently account for the logarithmic nature of hydrogen ion concentration changes and can make subtle transitions more visually apparent. Recognizing these differences is crucial for selecting the appropriate method to analyze and interpret titration data effectively.
