Using an allowable shearing stress of 5.4 ksi, design a solid steel shaft to transmit 16 hp at a

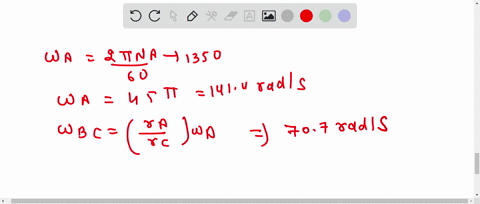

step 1 okay so to calculate the angular velocity we have omega equal to 1350 times 2 pi over 1 times 1

Using an allowable shearing stress of 5.4 ksi, design a...

Key Concepts

Torsional Shear Stress

This concept involves analyzing the shear stress generated in a circular shaft due to applied torque. In design problems, the maximum shear stress must remain below an allowable limit to prevent failure. Understanding torsional shear stress is pivotal for ensuring that the shaft can safely transmit power without experiencing excessive deformation or fracture.

Torque-Power-Speed Relationship

This concept connects the generated torque in a rotating system with the transmitted power and rotational speed. Engineers use the relationship between power (typically in horsepower or watts), torque, and speed (in rpm) to determine how much torque is required to drive a given load at a specific rotational speed, forming the basis for sizing the shaft.

Polar Moment of Inertia

This is a geometrical property of a circular cross-section that quantifies its resistance to torsional deformation. It plays a key role in the calculation of shear stress in a shaft under torque, as the distribution of material around the center affects how stress is handled within the structure.

Shaft Sizing and Design

Shaft design involves determining the appropriate diameter and material properties to safely carry the specified load while adhering to stress limits. This process incorporates material strength (such as allowable shear stress) and mechanical constraints derived from applied loads, ensuring that the design is both efficient and robust.
