Using Eqs. 2.27 and 2.30, find the potential at a distance z...

Key Concepts

Electrostatic Potential

Electrostatic potential is the scalar quantity that represents the work required per unit charge to bring a test charge from infinity to a given point in an electric field. It can be calculated for various charge distributions by integrating the contributions from individual charges or charge elements, using formulas derived from Coulomb’s law. This concept is critical when analyzing systems where potential differences drive the behavior of charges and fields, especially in configurations with symmetry or multiple charge components.

Electric Field as the Gradient of Potential

The electric field is directly related to the electrostatic potential through the gradient relation, E = -?V. This means that the electric field at any point is determined by how rapidly the potential changes in space, and in which direction the potential decreases most steeply. This concept is fundamental when transitioning between potential-based calculations and force-based analyses, as it allows one to compute the vector field from the scalar potential function.

Superposition Principle in Electrostatics

The superposition principle states that the total electrostatic potential or electric field due to a collection of charges is the algebraic sum of the individual potentials or fields contributed by each charge. This principle is crucial for analyzing systems with multiple charge distributions or configurations, as it allows the overall solution to be built up from simpler, known solutions. It applies equally to continuous distributions and discrete charge arrangements.

Symmetry in Charge Distributions

Symmetry plays a key role in simplifying the calculation of potentials and fields. When a charge distribution exhibits symmetry, such as being centered or having mirror images, it often allows one to reduce complex integrals to simpler forms. This makes it easier to predict the behavior of the field, deduce its direction, and sometimes determine points where the field or potential might cancel or add constructively.

Electric Dipole and Asymmetry Effects

An electric dipole consists of two equal and opposite charges separated by a distance, and it produces a unique potential and field configuration that is different from that of a single charge or a symmetric distribution. Changing one charge in a symmetric distribution to its opposite sign introduces a dipole component, which results in a cancellation of the potential at certain points (e.g., at the midpoint) while still allowing for a nonzero electric field. This concept helps explain discrepancies and subtle differences in behavior when comparing modified configurations to their originally symmetric counterparts.

Transcript

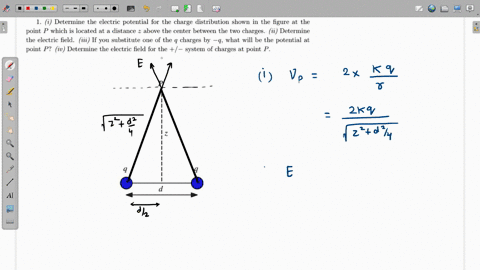

00:01 For this problem on the topic of electrostatics, we want to find the potential at a distance z above the center of the three charge distributions that we are shown in the figure, and then in each case compute the electric field e as minus nabler v.

00:17 Now, we want to then suppose that the right -hand charge in a is changed to minus q and find the potential at p, and we want to know what this suggests.

00:27 Now, for the first charge distribution, we have the potential.

00:32 V equal to 1 over 4 pi epsilon not times the product of charges 2q or rather the total charge 2q over the square root of the distance z squared plus d over 2 all squared.

01:06 For b we have the potential v equal to 1 over 4 pi epsilon not times the integral from minus l to l of lambda d x divided by the square root of z squared plus x squared and this is lambda over 4 pi epsilon not times the natural log of x plus the square root of z squared plus x squared and this is evaluated from minus l to l.

01:54 And so we get the potential to be lambda over 4 pi epsilon not times the log of l plus the square root of z squared plus l squared divided by l by minus l plus the square root of z squared plus l squared.

02:21 Squared which we can then simplify to lambda over 2 pi epsilon not times the natural log of l plus the square root of z squared plus l squared all over z next for the last charge distribution c we have the potential v as 1 over 4 pi epsilon 0 times the integral from 0 to r of sigma times 2 pi r d r divided by the square root of r squared plus z squared this is equal to 1 over 4 pi epsilon not times 2 pi sigma into the square root of r squared plus z squared and we evaluate this between 0 and capital r, which gives us sigma over 2 pi epsilon 0 into the square root of r squared plus z squared minus z.

04:00 Now that we have the potentials, we can find the electric fields.

04:05 And we'll start with a, the electric field e, is equal to minus 1 over 4 pi epsilon 0 times 2 q times minus a half times 2 z over z squared plus d over 2 all squared all to the power 3 over 2 z hat which we can then simplify to 1 over 4 pi epsilon 0 times 2 qz over z squared plus d over 2 all squared to the power 3 over 2 z hat...
