Using the characteristics of Fig. 37, determine the temperature at which the diode current will

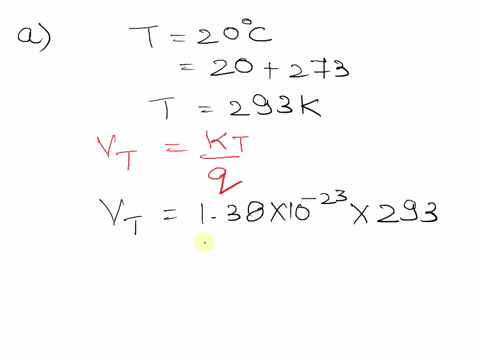

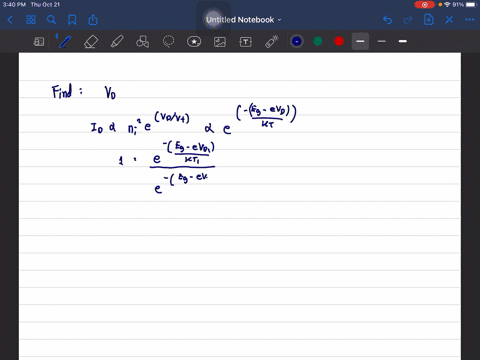

step 1 Okay, so to determine the thermal voltage for a diode, we have the formula Vt equal to k times T

Using the characteristics of Fig. 37, determine the...

Key Concepts

Diode Temperature Dependence

Diode current is highly sensitive to temperature variations because the processes of carrier generation, recombination, and diffusion in a semiconductor are thermally activated. As the temperature increases or decreases, the intrinsic properties of the semiconductor shift, leading to exponential changes in the current. This concept is key to understanding how external temperature variations can affect the performance and conduction of diodes.

Shockley Diode Equation

The Shockley diode equation models the relationship between the diode current and the voltage across the diode. It shows that the current increases exponentially with an increase in applied voltage, and the equation incorporates the effects of temperature through parameters such as the saturation current and the thermal voltage. This equation is fundamental in analyzing and predicting diode behavior under different thermal conditions.

Thermal Voltage

Thermal voltage is defined as the product of the Boltzmann constant and the absolute temperature divided by the electronic charge. It represents the voltage scale that characterizes the influence of temperature on charge carrier movement in a semiconductor. As temperature changes, thermal voltage alters the exponential factor in the Shockley diode equation, thereby significantly affecting the diode current.

Arrhenius Behavior of Saturation Current

The saturation current in a diode exhibits Arrhenius behavior, meaning it increases exponentially with temperature due to the thermally activated processes of carrier generation. This relationship is crucial because even small changes in temperature can lead to large variations in the saturation current, which in turn significantly influences the overall diode current as described by the Shockley equation.
