Question
$V(R)$, of a battery is given by$$V(R)=\frac{E R}{R+r}$$where $r$ is the internal resistance and $E$ is the electromotive force. Find $V(r)$ and $V(2 r)$.
Step 1
To do this, we simply plug in R = r into the equation: V(r) = E * r / (r + r) = E * r / (2r) Now, we can simplify the equation by canceling out the r terms: V(r) = E / 2 Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 53 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A battery has an emf E and an internal resistance r. It is connected to an external resistor R. When R=4 ohm the terminal potential difference is 9.5 V, and when R=6 ohm the terminal potential difference is 10 V. Find E and r.
Find the emf $(V)$ and internal resistance $(r)$ of a single battery which is equivalent to a parallel combination of two batteries of emfs $V_{1}$ and $V_{2}$ and internal resistances $r_{1}$ and $r_{2}$ respectively, with polarities as shown in figure
Current Electricity
The Battery and the Electromotive Force

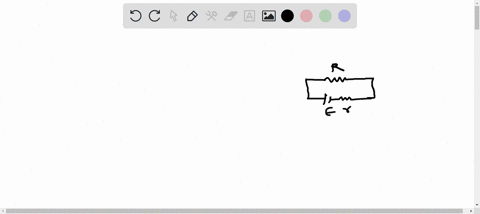

A battery of internal resistance $r$ having no load resistance has an e.m.f $E$ volt. What is the observed e.m.f across the terminals of the battery when a load resistance $R(=r)$ is connected to its terminals ? a. $2 E$ volt b $E$ volt c. $\frac{E}{2}$ volt d $\frac{E}{4}$ volt
