Water at 1000 kPa and 250^∘ C is brought to saturated vapor in a piston/cylinder device with an

Water at 1000 kPa and 250^∘ C is brought to saturated vapor...

Key Concepts

Adiabatic Process

An adiabatic process is one during which no heat is transferred to or from the system. In thermodynamics, this implies that any change in the internal energy of the system is solely due to work done on or by the system. In piston-cylinder devices, this concept is crucial as it helps in analyzing processes where insulation or rapid changes minimize heat exchange, leading to a direct relationship between work and changes in the state of the substance.

Pressure-Volume Work

Pressure-volume work is the work associated with a system’s change in volume under pressure, typically represented by the area under a process curve on a P-v diagram. This work is calculated by integrating the pressure with respect to the change in specific volume. It underpins many analyses in thermodynamic systems where the work done during expansion or compression provides insights into energy transfer without heat exchange in adiabatic processes.

Saturation and Phase Change

Saturation refers to the condition of a substance when it is at the verge of phase change, typically existing as a mixture of liquid and vapor in equilibrium. In thermodynamic analysis, particularly for substances like water, understanding the properties of saturated vapor and the conditions for phase transition is essential. This concept allows for the determination of state properties and helps in evaluating processes that involve transitions from superheated to saturated states under varying pressures and temperatures.

Thermodynamic Diagram Analysis

The pressure-volume (P-v) diagram is a graphical representation of the relationship between pressure and specific volume during a thermodynamic process. It serves as a visual tool for accurately estimating work done by measuring the area under the process curve. Such diagrams help in comparing approximate calculations, like estimating areas, with precise analytical or numerical integration of pressure changes within the system.

Energy Conservation (First Law of Thermodynamics)

The first law of thermodynamics, which is a statement of energy conservation, is central to thermodynamic process analysis. It relates the change in internal energy of a system to the work done and heat transferred. In an adiabatic process, where no heat is transferred, this principle simplifies to equating the change in internal energy directly with the work performed, enabling the calculation of specific work done in a system undergoing such a process.

Transcript

00:01 Here we have water at 1 megapascal initially and 250 degrees c and it is brought to a saturated vapor, so x2 is 1, in a piston cylinder with an adiabatic process, so q12 is 0.

00:22 So we know our energy equation now is this change in specific internal energy is minus equals minus, the change in specific work.

00:38 And the entropy equation, because again we're assuming that we're going to assume that this is reversible, gives us that the entropy in each state has to be the same.

00:49 So there's no change in entropy during this.

00:53 Let's see here.

00:54 So now we know two properties in state one, so we can get whatever else we need.

00:59 And i've got the specific volume, the specific internal energy, and the specific entropy.

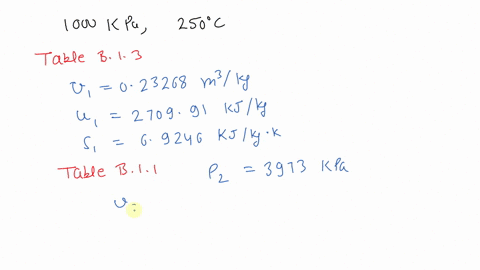

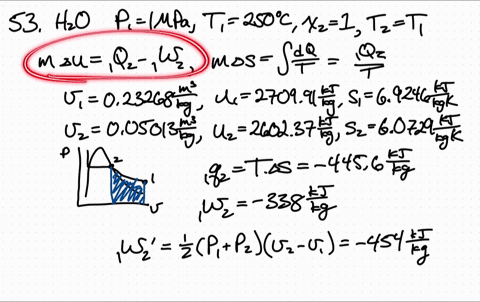

01:06 Now we know that s2, is equal to s1 so that gives us two properties at the second state and we can figure out the temperature is roughly 141 degrees celsius and this is actually on the on the saturated vapor boundary here so and then we have the pressure at that state and the specific volume and the specific internal energy and they asked us to estimate to get the let's see here to estimate specific specific work from the area in the pv diagram and compare it to the correct value with the correct value we can get from here and that's 159 .35 kilojoules per kilogram now we can estimate it again we can have our pv diagram here and we have let's see here um pb diagram we have state one is like up here and state two is on the boundary here so we can um get this work, estimate the area by assuming that there's a linear approximation between the two states...
