Water flows from the pipe shown in Fig. P3.107 as a free jet and strikes a circular flat plate.

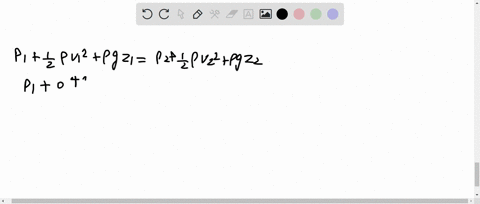

step 1 For this exercise we have that delta V equals Pi times 0 .1 meters times 0 .4 times 10 to the po

Water flows from the pipe shown in Fig. P3.107 as a free jet...

Key Concepts

Axisymmetric Flow

In axisymmetric flow, the flow variables do not change in the circumferential direction but only in the radial and axial directions. This symmetry simplifies the analysis of flows such as a jet emanating from a circular pipe and impinging on a flat plate, as it allows for reduction of the governing equations and integration over the symmetrical geometry.

Momentum Flux and Force Analysis

This concept involves analyzing the change in momentum of a fluid stream as it impinges on a surface. The resultant force on the surface can be linked to the fluid’s momentum flux. This analysis is important in problems where the impact force or associated pressure (for instance, measured by a manometer) is used to derive flow characteristics.

Manometry and Pressure Head Measurement

Manometry measures the pressure difference between two points using a fluid column. The pressure head, often represented as H, relates the height of the manometer fluid column to the corresponding pressure difference. Understanding the conversion between pressure and column height is key in evaluating the pressure impact due to fluid flow.

Flowrate Determination

Flowrate involves quantifying the volumetric or mass flow of a fluid through a given cross-sectional area. This determination is foundational in fluid mechanics, typically using the continuity equation which relates the product of cross-sectional area and velocity to the total flow, ensuring mass conservation throughout the flow system.

Free Jet Flow

This concept refers to the motion of a fluid stream that exits an orifice or pipe into the surrounding environment without any confinement. The analysis of free jet flows is crucial for determining parameters like velocity profiles, spread rate, and the impact of the jet on surfaces it strikes.

Bernoulli’s Principle

Bernoulli’s principle states that for an incompressible, non-viscous fluid in steady flow, the total mechanical energy remains constant along a streamline. This principle is often employed to relate pressure differences and fluid velocities, which is crucial when determining the exit velocity from the pipe and subsequently the flowrate.
