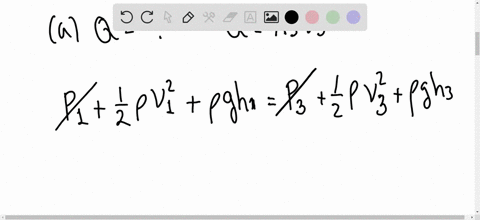

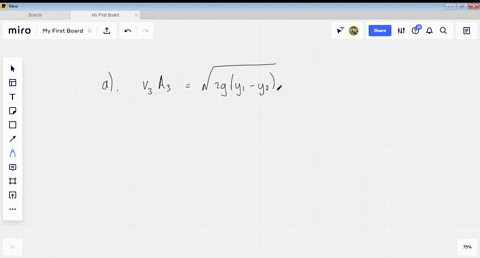

step 1 So here we're going to apply Bernoulli's equation, and we're going to apply the equation of cont

Water flows steadily from an open tank as in Fig. P12.81....

Water flows steadily from an open tank as in $\textbf{Fig. P12.81.}$ The elevation of point 1 is 10.0 m, and the elevation of points 2 and 3 is 2.00 m. The cross-sectional area at point 2 is 0.0480 m$^2$; at point 3 it is 0.0160 m$^2$. The area of the tank is very large compared with the cross-sectional area of the pipe. Assuming that Bernoulli's equation applies, compute (a) the discharge rate in cubic meters per second and (b) the gauge pressure at point 2. Figure P12.81 (FIGURE CAN'T COPY)

Key Concepts

Bernoulli's Equation

Bernoulli's Equation is a fundamental principle in fluid mechanics that states that for an incompressible, frictionless fluid, the sum of the pressure energy, kinetic energy per unit volume, and potential energy per unit volume remains constant along a streamline. It is used to relate pressure, velocity, and elevation changes in flowing fluids.

Continuity Equation

The Continuity Equation is based on the conservation of mass in fluid dynamics, which indicates that the mass flow rate must remain constant from one cross-section of a flow to another in a steady, incompressible flow. It relates the cross-sectional areas and velocities at different points in a conduit, ensuring that the product of area and velocity remains constant.

Discharge

Discharge, or volumetric flow rate, is a measure of the volume of fluid flowing through a cross-sectional area per unit time. In fluid dynamics problems, discharge is often computed by multiplying the flow velocity by the cross-sectional area, and it is a key output when analyzing pipe flow systems.

Gauge Pressure

Gauge pressure is the pressure measured relative to the atmospheric pressure rather than absolute zero. It indicates the additional pressure exerted by the fluid over the ambient atmospheric pressure, and is an important concept when evaluating the forces acting on a fluid in motion in various engineering applications.
