Water flows though the slit at the bottom of a...

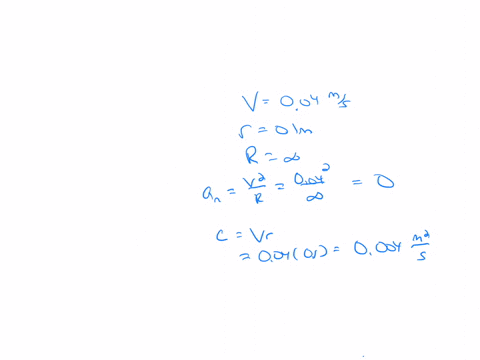

Water flows though the slit at the bottom of a two-dimensional water trough as shown in Fig. P4.50. Throughout most of the trough the flow is approximately radial (along rays from $O$ ) with a velocity of $V=c / r,$ where $r$ is the radial coordinate and $c$ is a constant. If the velocity is $0.04 \mathrm{m} / \mathrm{s}$ when $r=0.1 \mathrm{m},$ determine the acceleration at points $A$ and $B$

Key Concepts

Velocity Scaling in Radial Flow

In many radial flow problems, the velocity exhibits a dependence on the radial distance, often following an inverse relationship as seen in the formula V = c/r. This scaling implies that the speed of the fluid decreases with increasing distance from the center. Understanding this relationship is crucial for evaluating spatial derivatives necessary for computing the convective acceleration and, consequently, the total acceleration experienced by fluid particles.

Radial Flow

Radial flow is characterized by fluid motion that emanates outward from or converges inward towards a central point. Such flows typically exhibit a velocity that depends solely on the radial distance from the center. This directional dependence simplifies the analysis by reducing the complexity of the flow pattern, although it introduces curvature in the streamlines which must be accounted for when evaluating acceleration effects.

Polar Coordinate System

When dealing with flows that have radial symmetry, the polar coordinate system proves to be a natural choice for analysis. This coordinate system uses a radial coordinate and an angular coordinate to describe positions in the plane. Operations such as differentiation, gradient computation, and acceleration decomposition are modified to accommodate the geometry of polar coordinates, which is essential when calculating accelerations in a radially dependent flow.

Fluid Acceleration

Fluid acceleration is not simply the time derivative of velocity as in classical mechanics since fluid elements are moving through a spatially varying velocity field. Instead, the acceleration of a fluid particle is given by the material derivative, which accounts for both local changes in velocity and changes due to the particle moving into regions of different velocity. In steady flows, where the local time derivative is zero, the acceleration arises entirely from the convective effects.

Convective Acceleration

Convective acceleration refers to the change in velocity experienced by a fluid particle due to its movement through spatial gradients in the velocity field. In a steady flow, this effect is quantified by taking the dot product of the velocity vector with the gradient of the velocity, reflecting how the particle’s speed and direction change along its path. This concept is central to understanding accelerations in flows where the fluid’s velocity varies with position.
